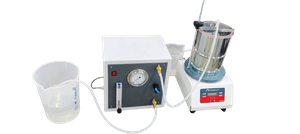

CHARACTERISTIC OPENING SIZE APPARATUS-WET SIEVE OPENING SIZE TESTER-EN ISO 12956-FOR GEOTEXTILE-

CHARACTERISTIC OPENING SIZE APPARATUS-WET SIEVE OPENING SIZE TESTER-EN ISO 12956-FOR GEOTEXTILE-

Model No: GT-102EMW

Compliance Standards : EN ISO 12956. To determine the characteristic opening size of a Single layer geotextile or geotextile related products, using the wet sieving principle.

Compliance Standards

EN ISO 12956


Applications

To determine the characteristic opening size of a Single layer geotextile or geotextile related products, using the wet sieving principle.


Working Principle

A quantity of graded granular material is spread on the surface of the Geotextile and washed through with water. The geotextile acts as a sieve and the graded granular material, which as soil, passes through the geotextile and is analyzed for available characteristic opening size in geotextile.


Salient Features

  1. Suitable to test various geotextile and geotextile related products.

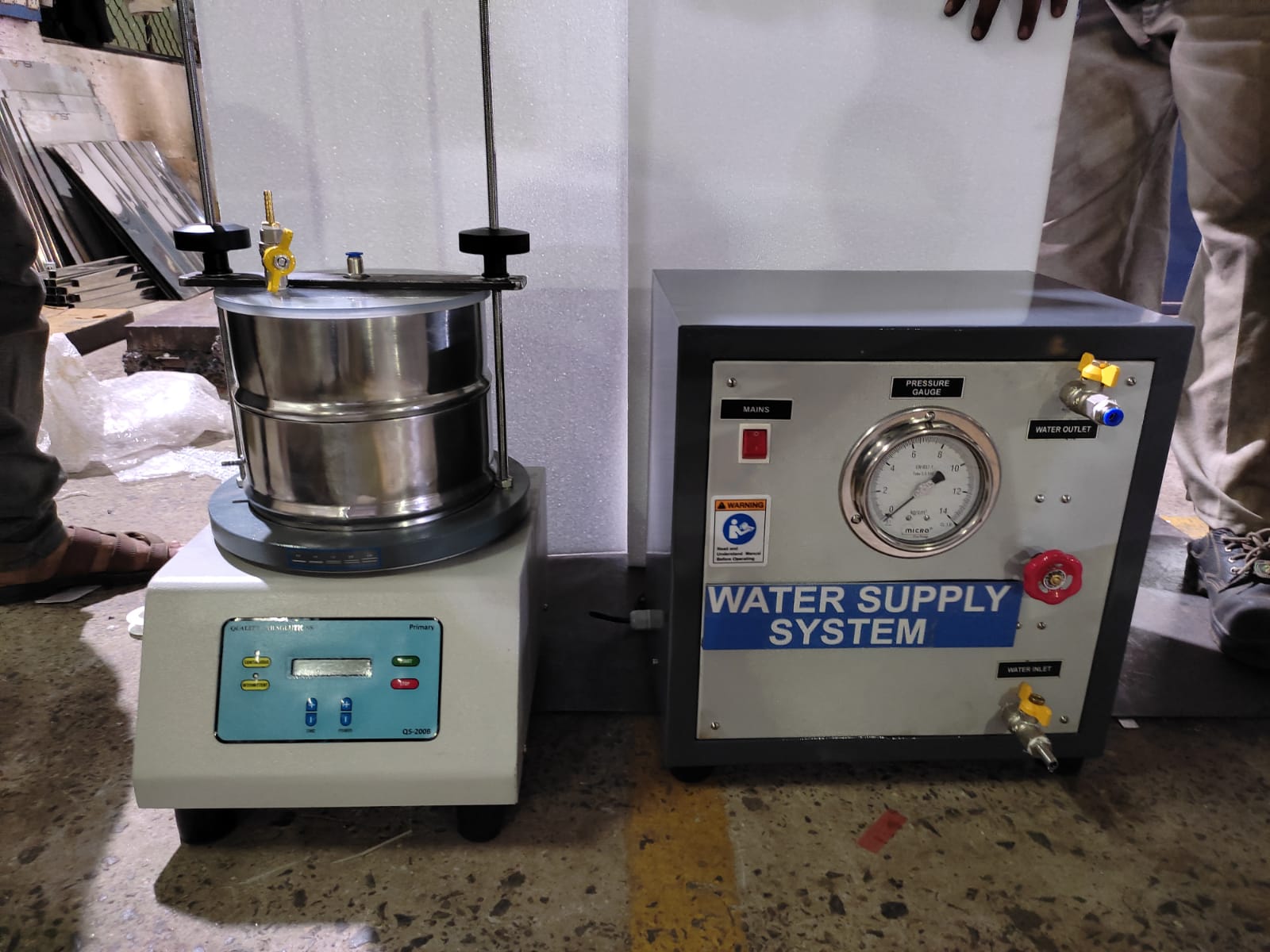

  2. Consists of Electromagnetic sieve shaker, Characteristic opening size frame, Spray nozzle, flow control valve as per EN ISO 12956
  3. Equipped with spray nozzle to ensure even wetting of the test specimen
  4. Equipped with Flow control valve and water Pump arrangement
  5. The specimen is placed on the metal grid to avoid excessive deformation of the specimen under the weight of the granular material.
  6. Vibrating time is adjustable
  7. Digital display of time & amplitude


Note

End user shall have Stop watch, Balance, Drying Oven and Filter paper to perform the entire experiment, which can be procured at extra cost.




Clamp holder size 130 mm Dia
Vibrating frequency 50 Hz
Vibrating amplitude 0.5 to 3.0 mm
Jet (Water) pressure 300 kpa
Water flow rate 0.5 liters/min
Timer Range 0 - 99.99 Minutes
Aperture of support screen 10 ± 1 mm
Weight 100 kgs
Power Supply 230 Volts, 50 Hz, Single Phase, AC Supply
