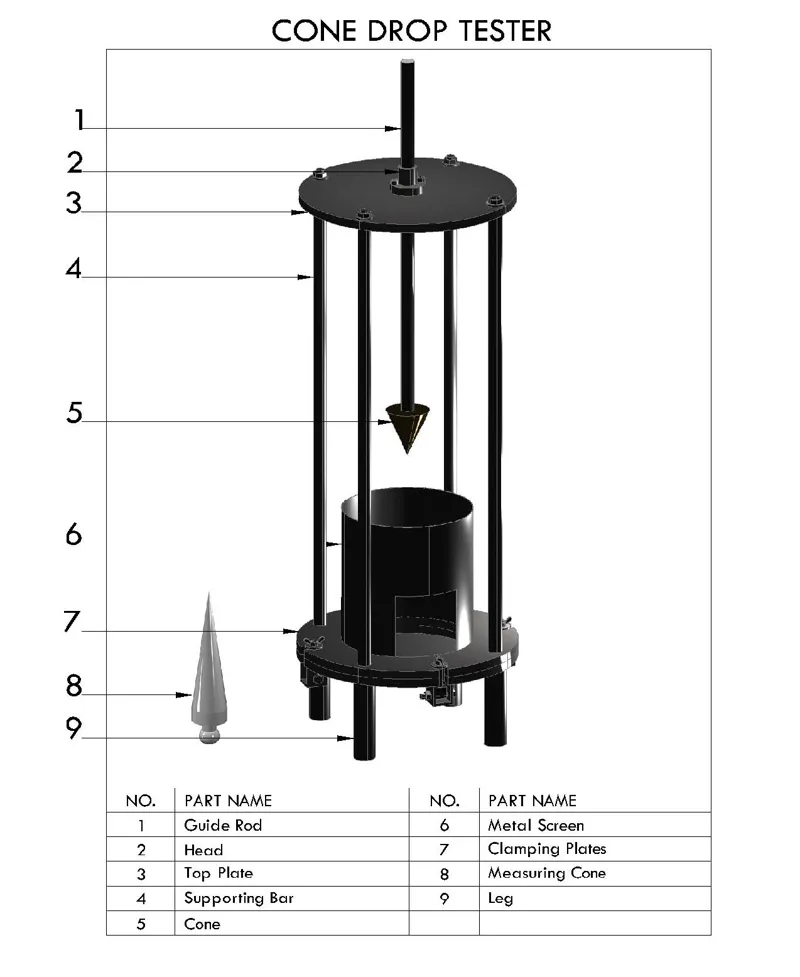

CONE DROP TESTER FOR GEOSYNTHETIC (DYNAMIC PERFORATION TESTER) - (EN ISO 13433, BS 6906)

CONE DROP TESTER FOR GEOSYNTHETIC (DYNAMIC PERFORATION TESTER) - (EN ISO 13433, BS 6906)

Model Number : GT-103

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton
Compliance standards:
EN ISO 13433 (2006), BS 6906 (Part 6), EN 918

Application:
Mainly used to measure the puncture strength as well as the fabric quality to withstand aggregate penetration.

Details:
EIE - Cone drop tester specifies a method to determine the resistance of Geosynthetics to penetration by a steel cone dropped from a fixed height. The degree of penetration is an indication of the behavior of the Geosynthetic, when sharp stones are dropped on its surface. The smaller the hole, the greater the resistance of geosynthetic/ geotextile to damage and vise versa.

The specimen is clamped between two steel rings. A steel cone (45° tip angle, 1000 g) is dropped from a height of 500 mm onto the centre of the specimen. The degree of penetration is measured by insertion of a graduated cone into the hole. Graduated conical measure will be the part of standard supply.

Optional Accessories At Extra Cost:
1)  Electrical arrangement to release the cone automatically @ Rs 20500
Technical specification
up-botton
CONE DROP TESTER FOR GEOSYNTHETIC - DYNAMIC PERFORATION TESTER - EN ISO 13433, BS 6906

Internal diameter of Clamping

150 ± 0.5mm

Drop Height

500 ± 2mm

The angle of Brass cone

45 degree

The weight of Brass cone

1000 ± 5g


Accessories
up-botton
Spares
up-botton
