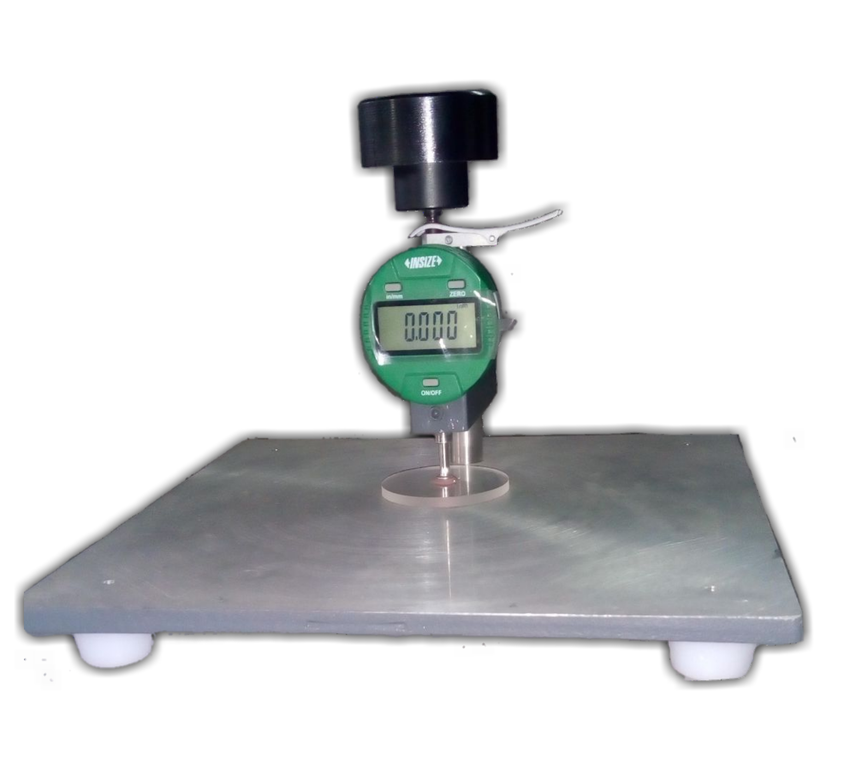

DIGITAL THICKNESS GAUGE - DEAD WEIGHT TYPE - 2 KPA, 20 KPA  - 0.001 X 10 MM - INSIZE - ASTM D5199

DIGITAL THICKNESS GAUGE - DEAD WEIGHT TYPE - 2 KPA, 20 KPA - 0.001 X 10 MM - INSIZE - ASTM D5199

Model Number : EIE-GT-104DI220

A thickness gauge is used to determine the thickness of geosynthetics and similar materials under specified pressures and conditions. The standards ASTM D5199, IS 13162 (Part 3), and EN ISO 9863-1 outline the test methods and equipment specifications required for accurate measurement.


Compliance Standards:

ASTM D5199, IS 13162 (Part-3), EN ISO 9863-1


Applications:

Suitable to measure Thickness of Geotextile, Geocomposite, Geonets, HDPE Geomembrane & Geomembrane material


Salient Features:

  1. Dead-weight type
  2. Anvil Type  : Flat
  3. Range : 0-10 mm
  4. Resolution : 0.001 mm (1 micron)
  5. Dial Type : Digital
  6. Mounting : Self-Standing table top
  7. Power : Button cell for digital sensor
  8. Digital gauge make : INSIZE or equivalent
  9. Lifting Lever : Manual Lifting Lever (Press to open, release to measure)
  10. This equipment generally confirms to TAPPI / ASTM / ISO standards


Following pressure foots and Applied Load will be the part of standard supply:


Serial NoPressure Foot (mm)Applied Load (Kpa)Applications
156.42 ± 0.01Shall be used for Geotextile, Geocomposite, Drainage Material & Geonets
26.352 ± 0.01, 20 ± 0.01 Shall be used for Geomembrane




Range

0-10mm

Resolution

0.001mm

Spindle Tip

Ceramic spindle tip and anvil

Buttons

on/off, zero, inch/mm

Battery

Cr2032

Other Functions

Automatic power off, Data output
