DIGITAL THICKNESS GAUGE - DEAD WEIGHT TYPE - 2, 20 & 200 KPA - 0.001 X 12MM - MITUTOYO - ISO 9863

DIGITAL THICKNESS GAUGE - DEAD WEIGHT TYPE - 2, 20 & 200 KPA - 0.001 X 12MM - MITUTOYO - ISO 9863

Model Number : GT-104DM200

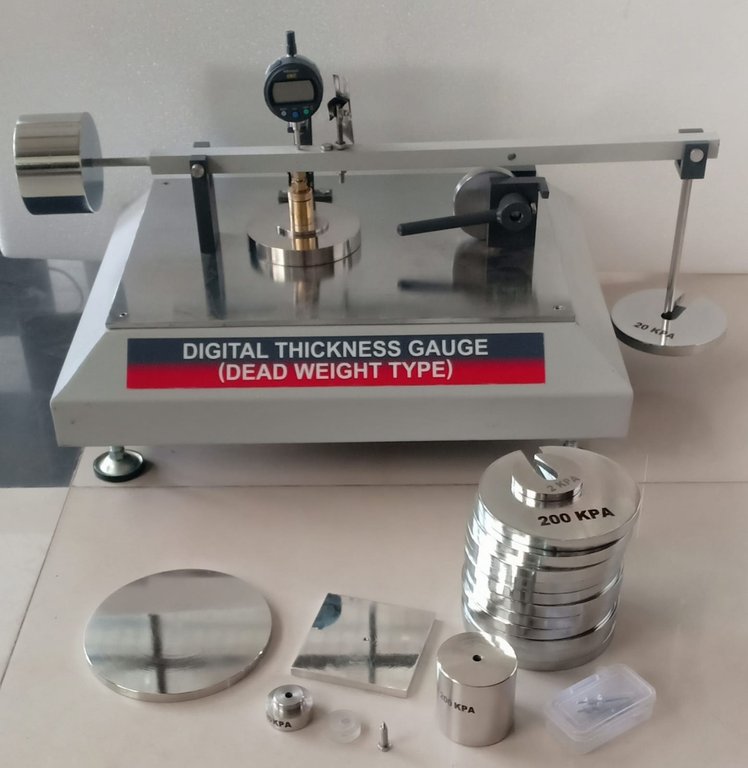

This is a Precision Instrument for measuring the Thickness of Paper , Plastic Film, Laminates, Foil or Board. A Digital dial gauge is mounted on the base with a Dead Weight on top so as to develop a uniform, reproducible constant pressure on the anvil through the foot.

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Compliance Standards:

ASTM D5199, ASTM D 5199, BS EN 964, ISO 9863, ASTM D1777-99, IS 13162 (Part-3)


Applications:

To control the physical properties of Geotextile and Geosynthetic Material.


Details:

  • Dead weight panel is provided to apply desired pressure varying from 50, 100 and 200 kpa
  • Surface plate is grounded and is rust free to enable reproducible results
  • Fitted with precise and accurate Mitutoyo thickness gauge
  • Digital indicator is easy to use while also being quick and efficient.
  • Carbide disc contact points
  • Protection Rating IP42
  • Data hold
  • Counting direction switchable
  • Battery SR 44 or LR 44


Function of Digital Models (IDC Type)

  • ON/OFF
  • Inch/mm Conversion
  • Zero/ABS
  • ±Direction Changeover
  • SPC Output
  • Battery Life   : 5,000 hrs
  • Power Supply : Silver Oxide Cell (SR-44 1pc.)
  • Preset
  • Provides GO/±NG Judgment
  • Face Rotates 330°


Following pressure foots and Applied Load will be the part of standard supply







Serial NoTest MethodProcedure NoMaterial detailsPressure foot detailsDead Weight details
1ISO 9863-1:2016Procedure - AFor testing material of Uniform thickness - Polymeric and bituminous geosynthetic barrierCircular, (10 ± 0,5) mm diameter2 ± 0.01 kPa
2ISO 9863-1:2016Procedure - AFor testing material of Uniform thickness - Polymeric and bituminous geosynthetic barrierCircular, (10 ± 0,5) mm diameter20 ± 0.1 kPa
3ISO 9863-1:2016Procedure - AFor testing material of Uniform thickness - Polymeric and bituminous geosynthetic barrierCircular, (10 ± 0,5) mm diameter200 ± 1 kPa
4ISO 9863-1:2016Procedure - BGeospacer and drainage geocomposites100 x 100 mm square2 ± 0.01 kPa
5ISO 9863-1:2016Procedure - BGeospacer and drainage geocomposites100 x 100 mm square20 ± 0.1 kPa
6ISO 9863-1:2016Procedure - BGeospacer and drainage geocomposites100 x 100 mm square200 ± 1 kPa
7ISO 9863-1:2016Procedure - COther Gyosynthetic products56.4 mm Circular, (25 ± 0,2) cm² area2 ± 0.01 kPa
8ISO 9863-1:2016Procedure - COther Gyosynthetic products56.4 mm Circular, (25 ± 0,2) cm² area20 ± 0.1 kPa
9ISO 9863-1:2016Procedure - COther Gyosynthetic products56.4 mm Circular, (25 ± 0,2) cm² area200 ± 1 kPa
10ASTM D5199Procedure - 1For Geotextile, Geocomposite, Drainage Material & Geonets56.4 mm diameter2 ± 0.01 kPa
11ASTM D5199Procedure - 2For Geomembrane & HDPE Geomembrane.Circular, 6.35 mm diameter2 ± 0.01 kPa, 20 ± 0.1 kPa






Technical specification
up-botton
DIGITAL THICKNESS GAUGE - DEAD WEIGHT TYPE - 2, 20 AND 200 KPA - 0.001 X 12MM - MITUTOYO - ISO 9863

Range

0-12 mm

Resolution (mm)

0.001 mm (1 Micron)

Anvil Type

Carbide-tipped contact points

Stem diameter

8 mm

Operating Temperature

0° to 40° C
