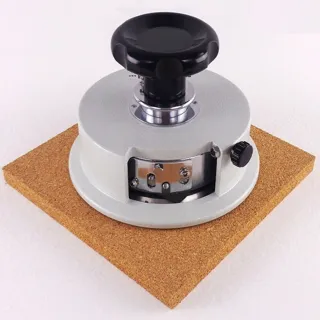

GSM ROUND CUTTER-113 MM SAMPLE DIAMETER-ASTM D3786, ISO 3801*

GSM ROUND CUTTER-113 MM SAMPLE DIAMETER-ASTM D3786, ISO 3801*

Model Number : PT-106DIA113

Detailed specification as mention in following page.

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Compliance standards:

ASTM D3776, ISO 3801, BS 2471, BS 3424, IS 14716


Applications:

Used for sample cutting in various industries such as acrylic sheets, aluminum and foils, bags and luggage of cotton, Pulp, Paper, Printing, Packaging and leather, belts, foot ware, paper industry.


Details:

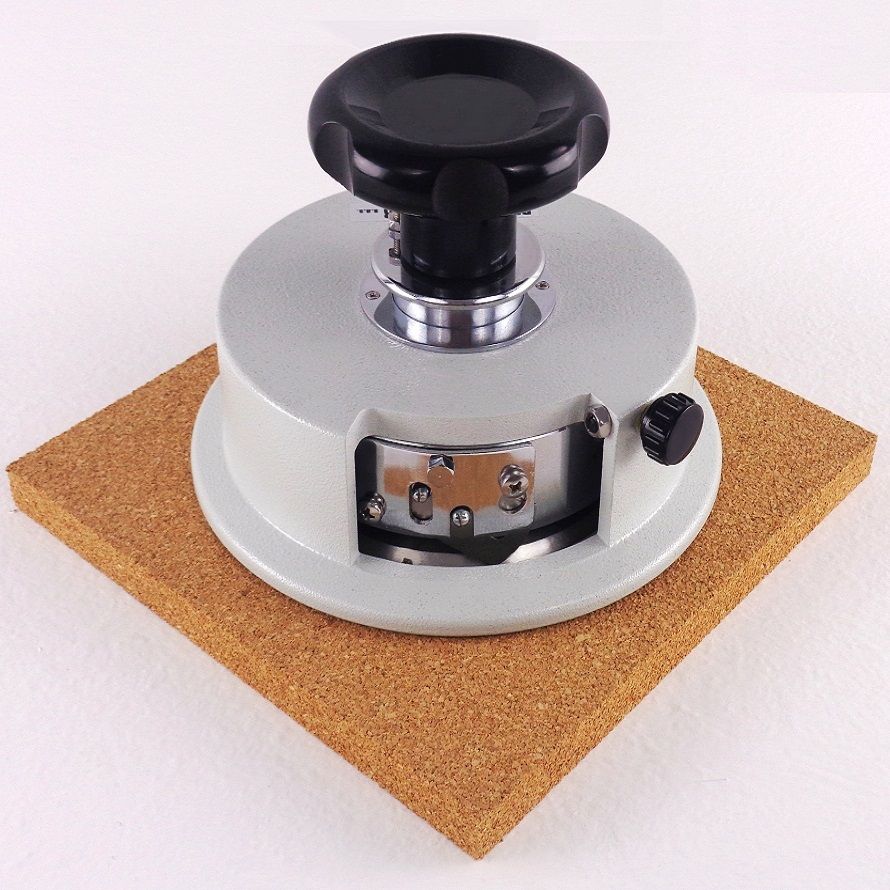

  • The equipment consists of Sample cutter with safety catch lock and Long life cutting pads.
  • High quality aluminum die casted main body
  • Light weight and resilient
  • Easy movement of top handle
  • The Sample Cutter has 4 Nos. of German reversible blades.
  • The blades are reversible in design i.e. If one side gets blunt due to continuous usage, the blades can be turned to the other side. In this way, all the four sides of the blades can be used.
  • Each blade has numbered sides from 1-4 for convenience in changing the blades.



Features

The unit is recommended for yield testing i.e. the determination of weight per unit area. The sample cutter cuts out rapidly and accurately circular specimen of 100 Cm2, which is exactly 1 / 100th of a square meter with the depth of up to 5 mm. The result is grams, multiplied by 100, gives the GSM (Grams per square meter) directly.

Technical specification
up-botton
GSM ROUND CUTTER-113 MM SAMPLE DIAMETER-ASTM D3786, ISO 3801

Sample Area

100 cm²

Sample Diameter

113 mm

Type of cut

Standard

Blade holders

4 Nos. Stainless Steel

Blades

Heavy duty Reversible Blades

No of Blades

4 Nos

Safety Lock

Fine Brass Lock

Hand wheel (Handle)

Special Bakelite Handle

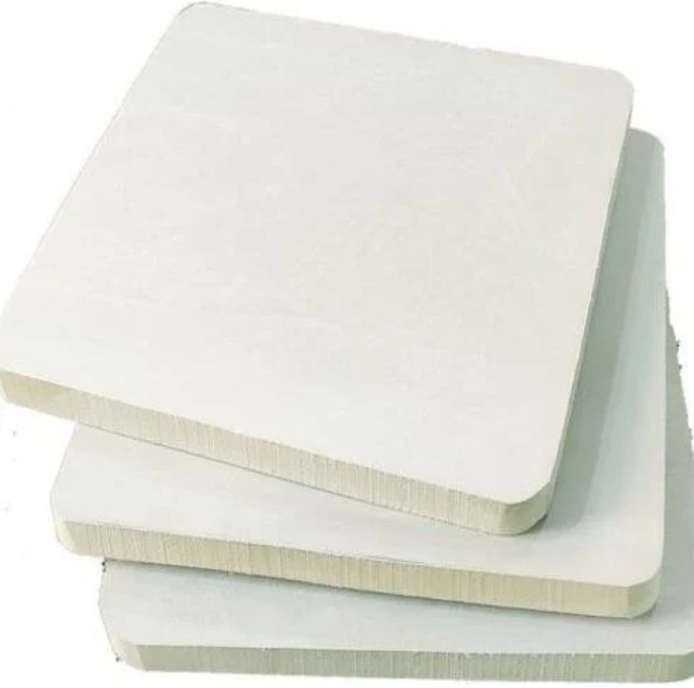

Cutting pad

New Rubber-Foam Pad
