DENSITY BASKET AS PER ASTM D6390 - DRAIN DOWN TEST

This test method can be used to determine whether the amount of draindown measured for a given asphalt mixture is within specified acceptable levels. The test provides an evaluation of the draindown potential of an asphalt mixture during mixture design and/or during field production. This test is primarily used for mixtures with high coarse aggregate content such as porous asphalt (open-graded friction course) and stone matrix asphalt (SMA).

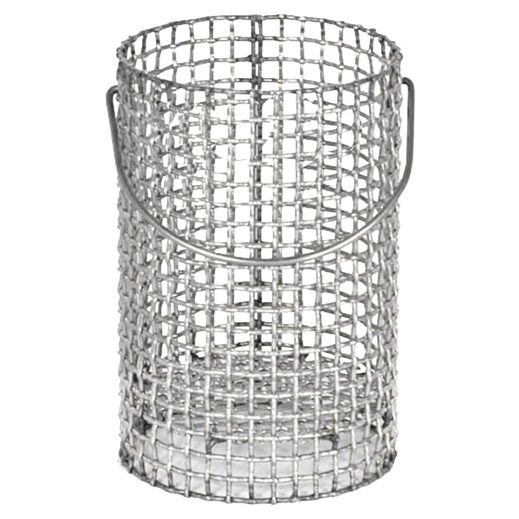

Standard basket meeting the dimensions shown in Fig. 1 as per ASTM D6390 / as per IRC SP 79 2008. Dimension is mentioned in above mention code "annex-C" Page no. 16. The basket is constructed using standard 6.3 mm sieve cloth. Standard basket meeting the dimensions shown in Fig. 1. The basket is constructed using standard 6.3 mm sieve cloth as specified in Specification E 11. 108 ± 10.8 mm dia X 165 ± 16.5mm height. Basket bottom will be of 25mm ± 2.5mm height.
