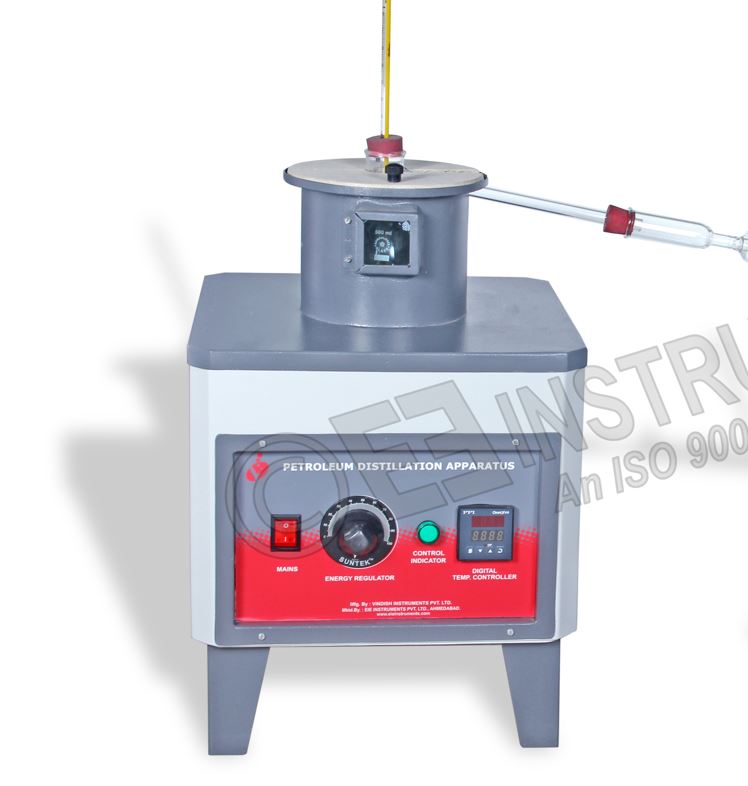

SHIELD STEEL WITH SUPPORT - ASTM D402, IS 1213

Compliance Standards:

ASTM D402, IS 1213, IP 27

Scope:

This apparatus is used for the examination of cut-back asphaltic materials by the distillation test.

Consists of following parts and accessories:

Shield

Lined with 3-mm fire proof insulation and fitted with transparent mica windows, of the form and dimensions shown in Fig. 2 of ASTM D402. It is used to protect the flask from air currents and to reduce radiation. The cover (top) will be made in two parts of 6.4-mm (1⁄4-in) fire proof insulation.

Shield support

Two 15 cm2 sheets of 16-mesh Chromel wire gauze on a tripod or ring.
