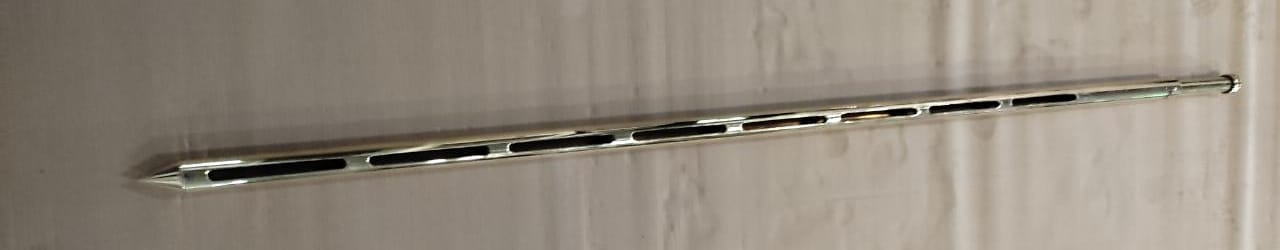

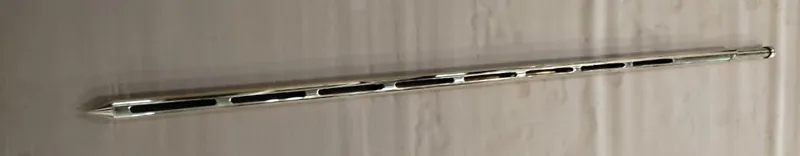

CEMENT / FLY ASH SAMPLER - FOR BULK SAMPLING

The slotted tube-sampler will be between 1.5 to 1.8 meter long and about 35 mm in outside diameter and will consist of two polished brass telescopic tubes with registering slots which are opened or closed by rotation of the inner tube; the outer tube being provided with a sharp point to facilitate penetration.

Compliance Standards

ASTM C183,IS-3535 (Fig.1)

Details

1. For sampling hydraulic cement in bulk shipments or bulk storage.
2. Has two polished brass telescopic tubes with registering slots (with partitions) that open or close by rotation of the inner tube.
3. Outer tube has sharp point to facilitate penetration.
4. Made from brass with wooden handle,
5. Inner Brass tube of 28.5 mm OD X 2mm thick, total length 1845 mm, with 8 slots.
6. weight 7.500 per unit
7. Can also be used for fly ash sampling
