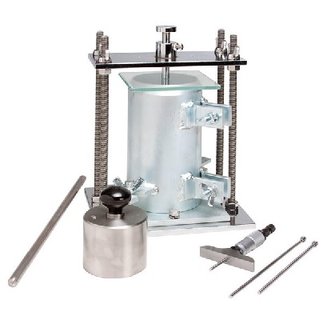

GROUT VOLUME CHANGE (MICROMETER BRIDGE SET)

Model Number : EIE-7020

The Grout Volume Change (Micrometer Bridge Set) conforms to ASTM C1090 standards for measuring grout volume changes. It includes a micrometer bridge, depth gauge, cylinder mould, and accessories, and is used to measure height changes due to hydration, settlement, evaporation, and other physical/chemical effects during hardening.

More Information

AS PER ASTM C1090

Specification:

Micrometer Bridge
Micrometer Depth Gauge 25mm
Cylinder Mould 75x150mm
Temping Rod
Glass Plate 100mm
Weight 3 lbs, 6kg

Grout Volume Change (Micrometer Bridge Set) is useful in measuring grout volume change. It is not a single machine but it is a unit of different tools. The unit is so well designed that it can hold one cylinder for repeated volume change measurement. During the measurement, there is no movement or disturbance in the specimen.

The unit testing covers the determination of changes in height. It measures from the time of molding till the mixture gets harden. The machine also measures the volume change that happens due to hydration and settlement.

Grout Volume Change is also capable of measuring volume change due to evaporation, chemical effects as well as physical effects.
