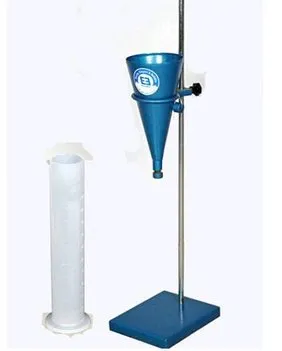

MARSH CONE FUNNEL - WITH STAND AND MEASURING CYLINDER - FOR GROUT TEST - IS 14343

The Marsh Funnel Test is a good indicator of true viscosity of the grout slurry, it is also an important index property for quality control of field mixes

1. This cone is used to find out viscosity of slurry and like material.
2. The marsh cone is 150 mm in diameter at the top and 300 mm long and tapers to join a tube 50mm long having 5 mm inside dia.
3. Top of the cone has a screen with 1.5 mm opening for screening out lumps.
4. The capacity of the funnel is 2000 cc.
5. Time in seconds required to flow out 1000 cc of slurry from cone is measured as funnel viscosity of the material.
6. Supplied with a 1000 CC Plastic Measuring Cylinder.
7. Supplied without stop watch
