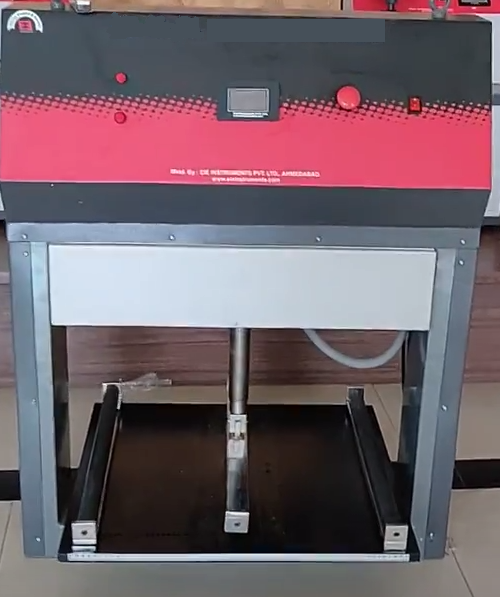

BENDING STRENGTH TESTING MACHINE FOR CONCRETE KERBS - 50 KN

Model Number : CC-104EL6060

As per IS : 5758 (2020) with TOUCH SCREEN control panel and automatic pace rate control to control the rate of loading. Capacity 50000 Kgf. Least count 0.1 Kgf. with adjustable test span to accommodate different size tile specimen up to 60 x 60 cm. Direct reading of BENDING STRENGTH in KN or Kgf. Working on 230 V AC single Phase 60 Hz. PC connectivity with software available at extra cost.

Compliance with following international standards:

IS : 5758 (2020)

Introduction:

Electro-Mechanical Design, quite and vibration free operation, Rate of loading controlled through AC drive.
Capacity : 500 kgf
Least Count : 0.1 Kgf
Accuracy : 0.2% of Full Scale

Salient Features:

Suitable for bending strength of concrete kerbs as per IS : 5758
Direct reading possible for different shapes of tiles (Square, Rectangular )
Direct Display of Load / Collapsing Force
Selectable Test Units - Kg, KN
Auto-stop upon completion of Test.
Provision for emergency switch in case, if user wants to stop the load applicator at certain height
With LCD Display digital control panel.
INTERGERATED AC INDUCTION MOTOR WITH DRIVE to control rate of Loading @ 0.06 n/mm2 per sec.
With 2 MS rollers of 20 mm diameter
The machine will be supplied complete with 40 mm diameter and 20 mm thick MS plate to apply the load of the kerb.
With adjustable Test Span
With Auto-Calibration facility using standard Cast Iron Weights and standard code (Weights will not be supplied with the machine)
Complete Unit is powder coated in attractive shades
Operation on 230 Volt, 50 Hz, Single Phase, AC Supply

Supplied with Bending strength Software (Optional accessories):

PC Software to log & Modify the generated date
Two way communication with the machine
Direct reading of bending strength and Breaking strength in excel format
Reading can be saved and printed from the computer
Connection through RS-232 port
User can start/stop the machine form the computer
User can enter Batch no, Date, Time, Dimensions of the test samples for report purpose
User can enter company LOGO for report generation
Can export the generated report in PDF, EXCEL, WORD Format.

Note : 3 KVR servo controlled stabilizer is recommended

Design	Electro-Mechanical
Operation	Quiet and Vibration free
Controlling System	AC Variable Frequency Drive with AC Induction Motor
Load cell Capacity	5000 kgf (50 KN)
Least count for load	0.001 kN
Motor Speed Control	Through AC Drive
Test units	KG, KN Selectable
Accuracy	0.2% of full scale
Can accommodate	Maximum kerb size of 600 x 600 mm (60 x 60 cm)
Display	4" touchable screen display.
Construction	Mild steel body
Paint	Powder coating
Power Supply	230 volts, 50 hz, single phase, AC Supply
Overall Dimensions	900 X 9200 X 1140(L X W X D) mm
