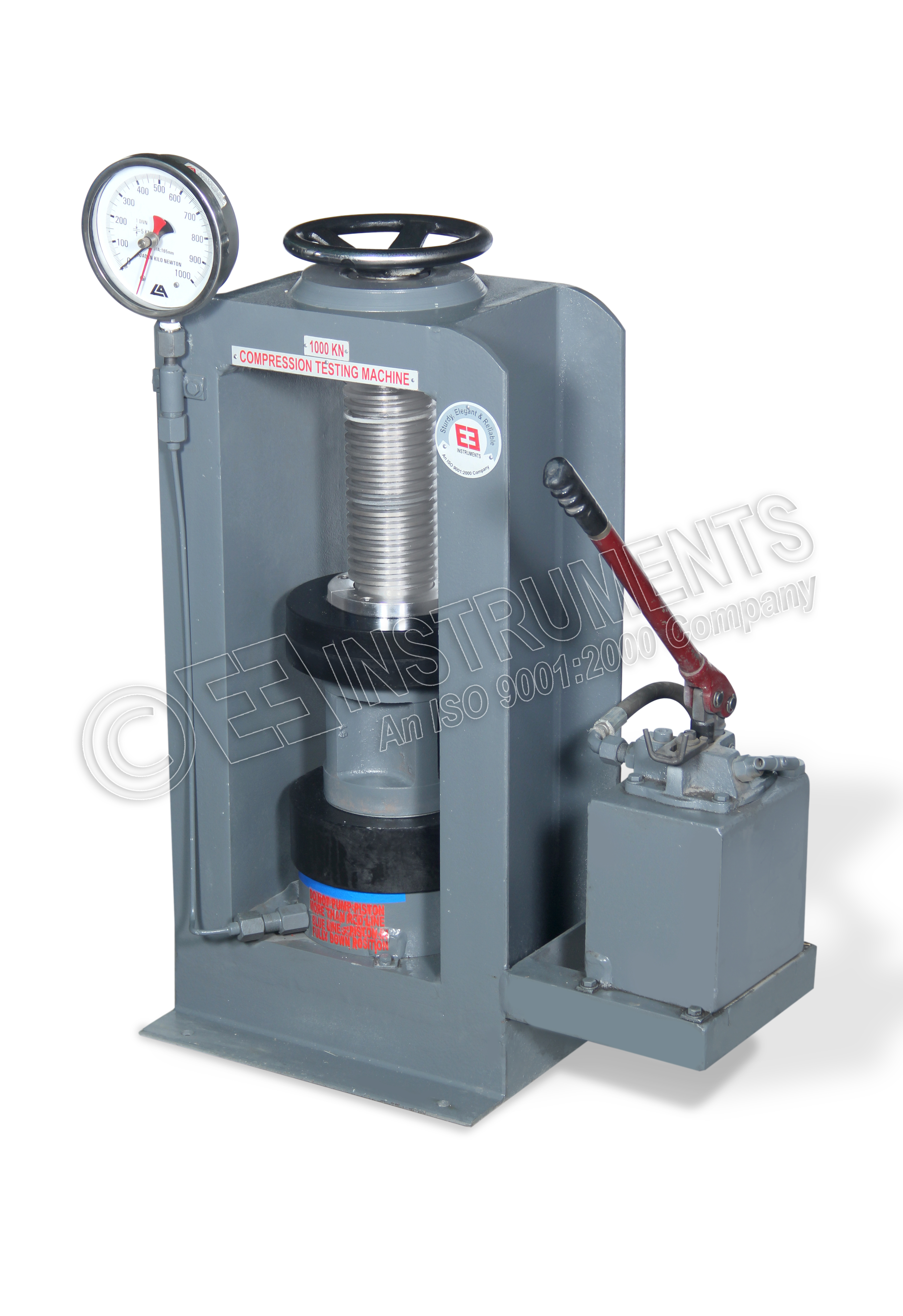

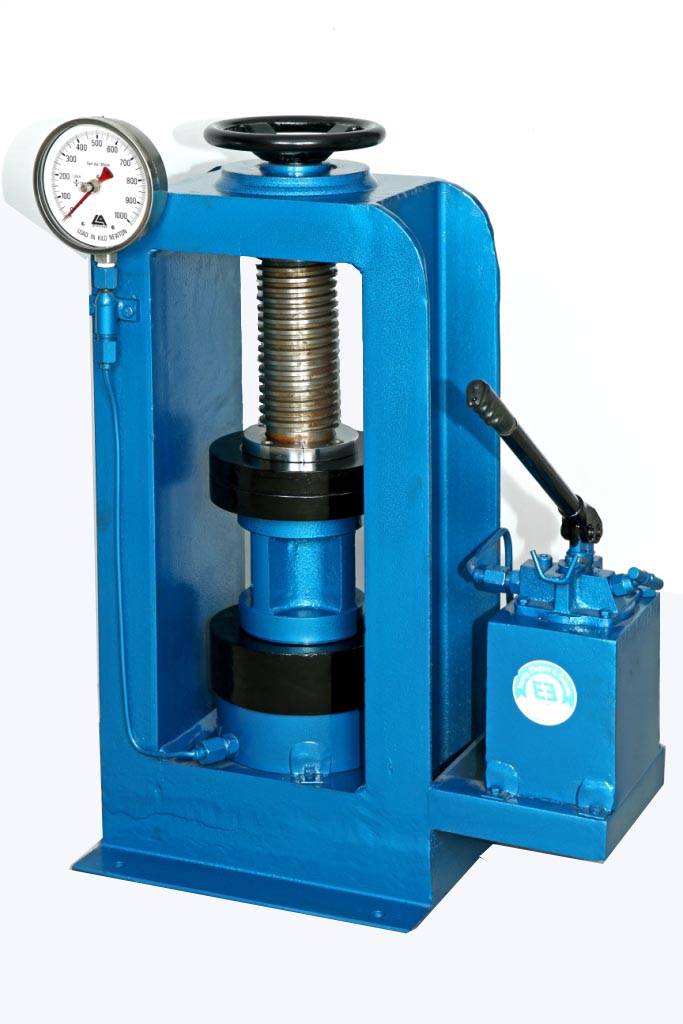

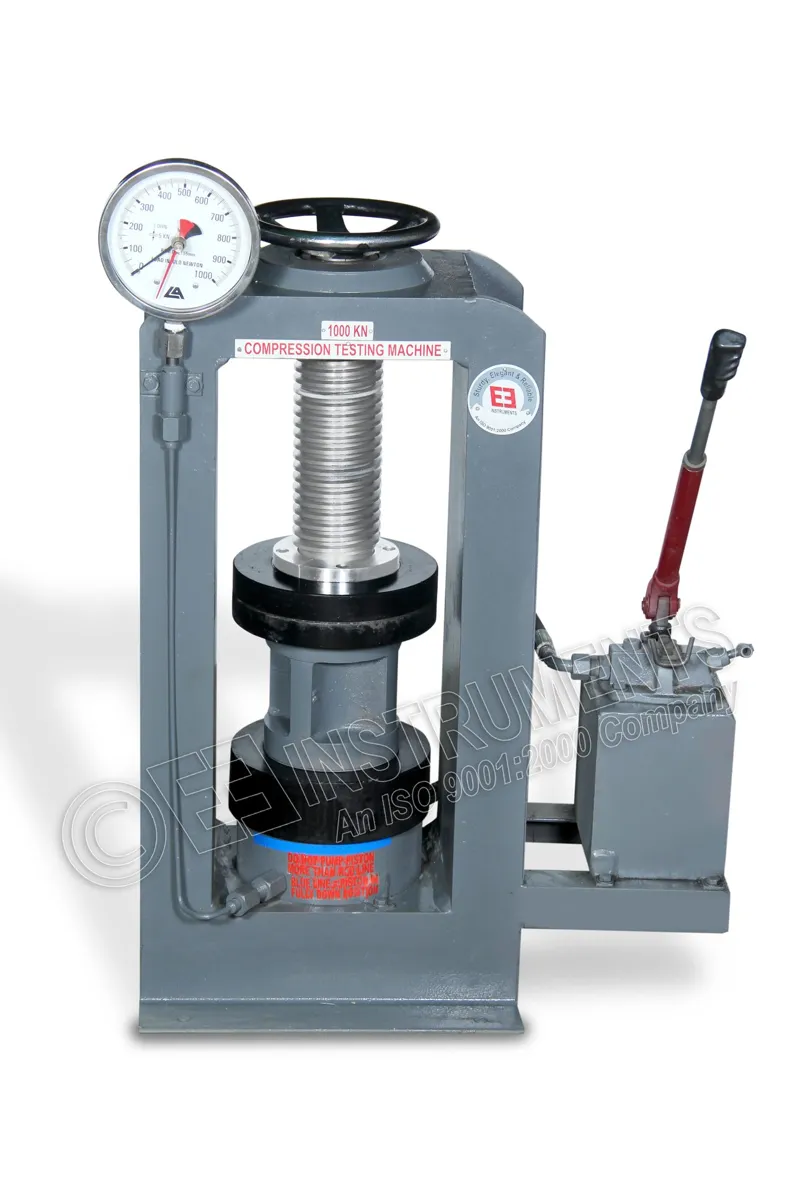

COMPRESSION TESTING MACHINE - HAND OPERATED

Model No: TM-042H.

Compression Testing Machines conform to the requirements of IS : 516 and other international standards like BS and ASTM. Detailed Specification as follows:
CTM CAPACITY
  • 500 KN
  • 1000 KN
  • 1200 KN
  • 2000 KN
Add to Cart

Available Capacity.

  1. 1000 kn (100 Ton)
  2. 1200 kn (120 Ton)
  3. 1500kn (150 Ton)
  4. 2000kn (200 Ton)

With Improved and Novel Pump - for easy and effortless pumping, the pump becomes more and more light as the load increases.

For determination of compressive strength of cement by testing concrete cylinders, cubes. The machine works on hydraulic pressure gauge marked in 5 KN division and is fitted with maximum red pointer, in addition to the live pointer. The machines are nicely painted in hammertone stray. Complete with pressure gauge duly calibrated.

Some of the salient features are

  • High Stability
  • Self-aligning platen assembly.
  • Gauges are calibrated in Kilo Newton against certified Proving Rings.
  • Suitable for testing cubes of various sizes
  • Using special platens, bricks also can be tested.(Extra cost)
  • Hydraulic Piston hard chrome plated.

General Specifications

 1) LOADING UNIT
The loading unit consists of a cross-head and base with solid channel supports connecting the base and cross-head firmly. The Hydraulic jack is fixed to the base. The platen of the machine are hardened ground and polished The upper platen is provided with self-aligning action. To facilitate testing of various size specimens, spacer block provided.

2) PUMPING UNIT
The hydraulic pumping unit is Manually Operated. Made of POLYHYDRON make.  The load is measured on Bourdon tube type pressure gauge which is calibrated against certified proving rings. The pressure gauge is fitted maximum load pointer.
Pumping Hand operation
Pump Speed Manual
Motor No
Reading Analog
Least count 0.5% of full load
Accuracy ± 2%
Release valve operation Required
Auto stop after failure of specimen Not available, need to stop the hand pumping
Auto Release of Pressure after specimen failure Not Available, Need to release pressure manually after the completion of test
Calculation of result Manual
Holding of Max.Load Available
Pace Rate or Rate of Loading indication Not Available
Operator skill to control Pace Rate Not Applicable
Bar Graph Not Available
Multi Channel operation Not Available
Load indication and Control Manual
Saving of records Not Available
Pen drive slot Not Applicable
Real time graph Not Applicable
Printer interface (Direct connectivity to printer w/o computer) Not Applicable
Computer operation software and data Acquisition software Not Applicable
Displacement controlled operation Not Available
Modulus of Elasticity Calculation Not Available
Flexural attachment Not Available
Splitting Tensile Test Not Available
LAN Connectivity Not Available
Auto internal Calibration without proving ring Not Available
Piston over travel safety cut off Not Available
Over load safety cut off Not Available
Shot circuit protection Not Required
