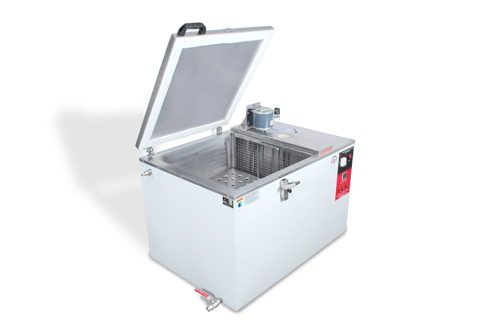

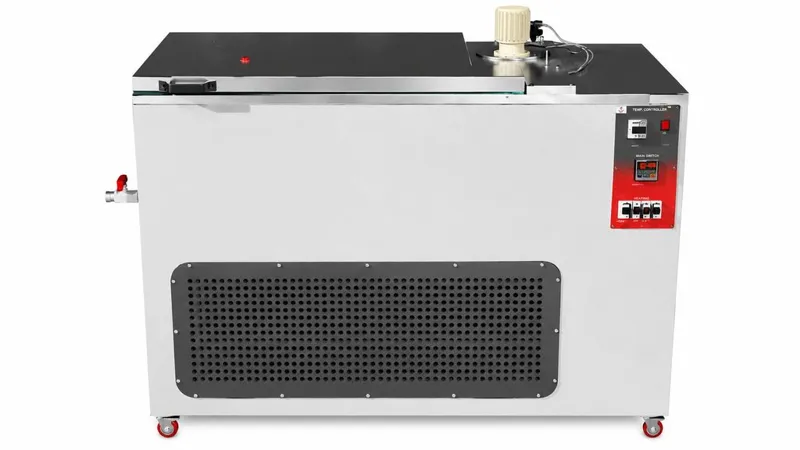

ACCELERATED CURING TANK-HEATING + COOLING-FOR 6 CUBES-

Model No: EIE-408.HCS6

Accelerated Curing Tank having capacity to accommodate various sizes of concrete cube moulds or Cement mortar Cube Moulds, with a facility for Normal curing @ 27°C± 2°C or accelerated curing by boiling water method up to temperature range : 100 ± 2°C as per IS standard IS : 9013. Also it will have capacity for curing by warm water method at temperature 55 ± 2°C.

More Information
Techincal Specification

Compliance Standards :

IS : 9013

HEATING + COOLING

For 6 cubes of 150 mm / 12 cubes of 70.6 mm size. Controlled from 20°C to 100°C ± 2°C curing temp, can be controlled at 27°C ± 2°C for normal curing or accelerated curing by boiling water method up to temperature range : 100 ± 2°C as per IS standard IS : 9013. Also it will have capacity for curing by warm water method at temperature 55 ± 2°C. The whole body of cube mould with the sample of concrete/cement mortar inside is to be immersed in the tank and the Tank is stout enough to bear heavy load on its platform.

Tank will consist of a rectangular double walled metal cabinet, inner chamber made of 1mm thick stainless steel(S.S.304). Outer chamber made of 20 SWG Galvanized sheet ‑ powder coated. 50 mm gap between the walls is filled up with special grade glass wool for purpose of insulation to avoid heat and cool losses. Specially designed L shaped High wattage heaters will be mounted in the chamber in such a way that, it facilitates easy replacement within 5 minutes by normal skilled person. It will have facility to circulate water inside the chamber by stirrer to maintain the uniform temperature of water. Inside the chamber, there will be a heavy gauge stainless steel perforated platform with ribs to with stand the heavy load of the cubes. It will also have a lid with lifting handle to cover the chamber.

Computer interface provided for data logging (Optional)
Refrigeration system with Emersion make compressors
Inner made of 304 grade stainless steel.
Inner dimension: 31" x 25" x 10" (L x W x H)
Outer made of Mild Steel with powder coated.
Double folded hinged Lid made of S.S.304
Water circulating pump cum stirrer for uniform temperature.
Provided with water inlet and outlet valves.
with stand or shelf for keeping cubes
Supplied without Cube Moulds.
Operations 230 volts single phase, 32 Amp
Over all dimension 56"x34"x45"

OPTIONAL ACCESSORIES:

PC Interface at extra cost Rs. 25000.00

Type of model	Floor standing model
Mobility	Castor wheels (Heavy duty wheels) for easy mobility
Construction	Double walled construction
Inner chamber	Stainless Steel S.S.- 304 Grade Material
Exterior body	20 SWG Galvanized sheet Material
Exterior Body Paint	Powder coated in attractive shades
Working size
External Size (LWH)
Chamber volume
Can accommodate	6 cubes of 150 mm / 12 cubes of 70.6 mm size
Insulation	Special grade glass wool for purpose of insulation to avoid heat and cool losses.
Insulation thickness	50 mm
Sample placement arrangement	Heavy gauge stainless steel perforated platform with ribs to with stand the heavy load of the cubes.
Lid of the bath	Lid with lifting handle to cover the chamber.
Temperature controller	Microprocessor based Digital Temperature Controller cum Indicator
Temperature Range	20 °C to 100 °C
Temperature Display	LED Digital Display
Temperature sensor	PT-100 Sensor
Temperature Resolution	0.1 °C
Temperature Accuracy	± 2 °C
Temperature Uniformity	± 2 °C
Heater Types	Specially designed L shaped High wattage heaters
Refrigeration System	Emerson/Kirloskar/Danfoss/Reputed make refrigeration system with compressor
Refrigerant	R134-A Grade refrigerant
Water Circulation	Water circulating pump cum stirrer to maintain uniform temperature throughout the chamber.
PC Interface	Optional computer interface for data logging purpose
Overall Dimensions	1450 X 1000 X 1175 (L X W X D) mm
Weight (Approx.)	185 Kg
