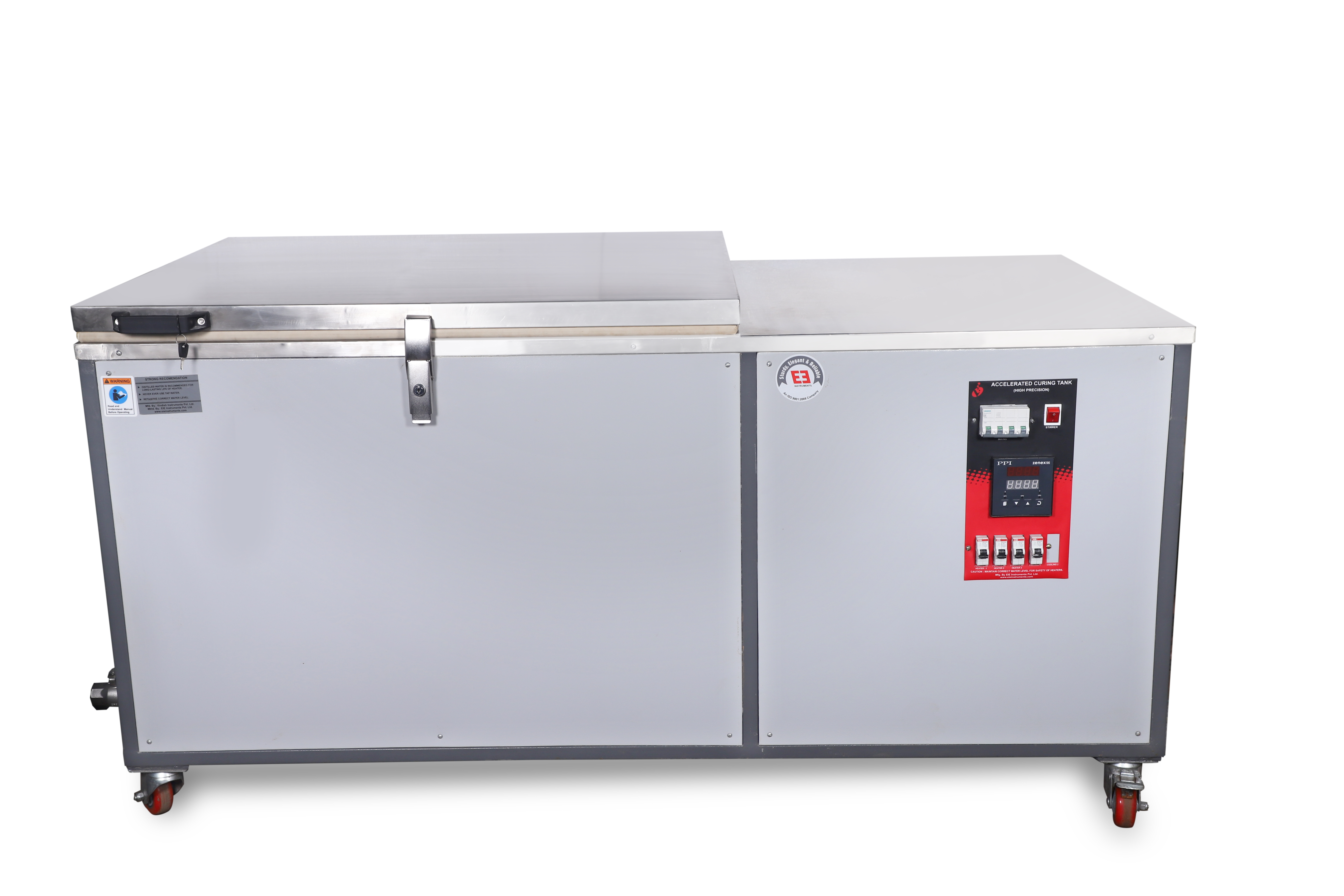

CURING TANK-HEATING + COOLING-FOR 200 CUBES OF 70.6 MM

CURING TANK-HEATING + COOLING-FOR 200 CUBES OF 70.6 MM

Model No: VIPL-042-200C

Detailed specification as follows:

FOR CONDITIONING OF CEMENT TEST SAMPLES AS PER DETAILS OF CLAUSE 6.3 OF IS: 4031 (PART 6)


Tank will consist of a rectangular double walled metal cabinet, inner chamber made of thick gauge stainless steel. Outer chamber made of Galvanized sheet - powder coated. Specially designed L shaped High wattage heaters will be mounted in the chamber in such a way that, it facilitates easy replacement within 5 minutes by normal skilled person. It will have facility to circulate water inside the chamber by stirrer to maintain the uniform temperature of water. Inside the chamber there will be a heavy gauge stainless steel perforated platform with ribs to withstand the heavy load of the cubes. It will also have a lid with lifting handle to cover the chamber.


The front panel will have power supply indicating lamp and one main switch suitable for operation on 440 V, 50 Hz Three phase, AC supply. It will also have a DIGITAL Auto tuning PID temperature indicator cum controller fitted on the front panel.

  • Floor model, heavy duty wheels for mobility.
  • Temperature Range: 27°C
  • Temp. Control: Digital Indicator cum controller
  • Resolution: 0.1°C
  • Control Accuracy: ± 1°C
  • Uniformity: ± 2°C
  • Refrigeration system with Emersion make compressors
  • Inner made of 304 grade stainless steel. (18 SWG)
  • Outer made of G.I.. (20 SWG)
  • Double folded hinged Lid made of S.S.304
  • Water circulating pump cum stirrer for uniform temperature.
  • Separate compartment for electrical wiring and stirring unit for unobstructed and safe storage of cube mould.
  • Polyurethane Insulation (PUF)
  • Provided with water inlet and outlet valves.
  • Power Consumption: 230 V, 50 Hz single Phase.
  • with stand or shelf for keeping cubes
  • Capable to accommodate 200 cubes of 7.06 cm at a time
  • Supplied without Cube Moulds and cube holding S.S. Cage.
  • 216 kg per unit
Overall Dimensions 1750 X 1000 X 1020 (L X W X D) mm
Weight (Approx.) 216 Kg
