Modulus of elasticity attachment to Automatic Pace Rate controlled CTM with data acquisition system and software. Will be supplied with one Horizontal and One vertical displacement sensor to measure the displacement in concrete specimen.
The CTM machine should be EIE Make only or has to be procured from us.
MODULUS OF ELASTICITY ATTACHMENT TO CTM DIGITAL WITH DATA ACQUISITION SYSTEM AND SOFTWARE
| •Least count of displacement | : 0.01 mm |
| •No of Horizontal and vertical LVDT supplied | 1 no each ( Additional LVDT at extra cost) |
| •Accuracy of displacement | : 1% or better |
Salient fetchers of data manager PC software
- Two way communication i.e machine operates from computer and from the touch screen controller both (Stat, stop, save data and save graph)

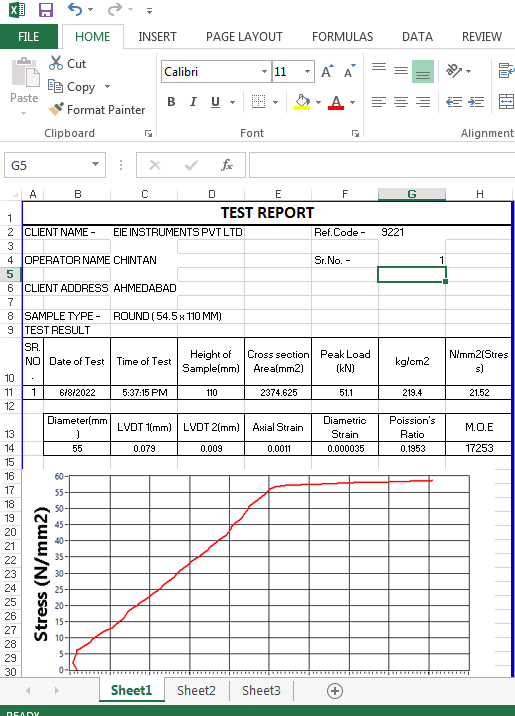

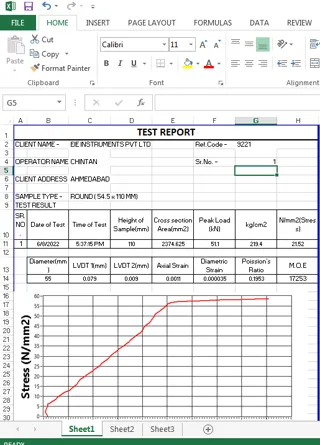

- Results directly saved in excel file
- Graph also saved in excel file
- Capable to save customer name, other details of cutomer, ageing of cube moulds, identification mark of the cube mould, date and time of testing
- Capable to print direct report from the computer
- Capable to select different test perameters like pace rate, sample size and area from the computer (software)
- Stress Vs. strain graph
- Direct determination of the poision ratio and MOE in software
