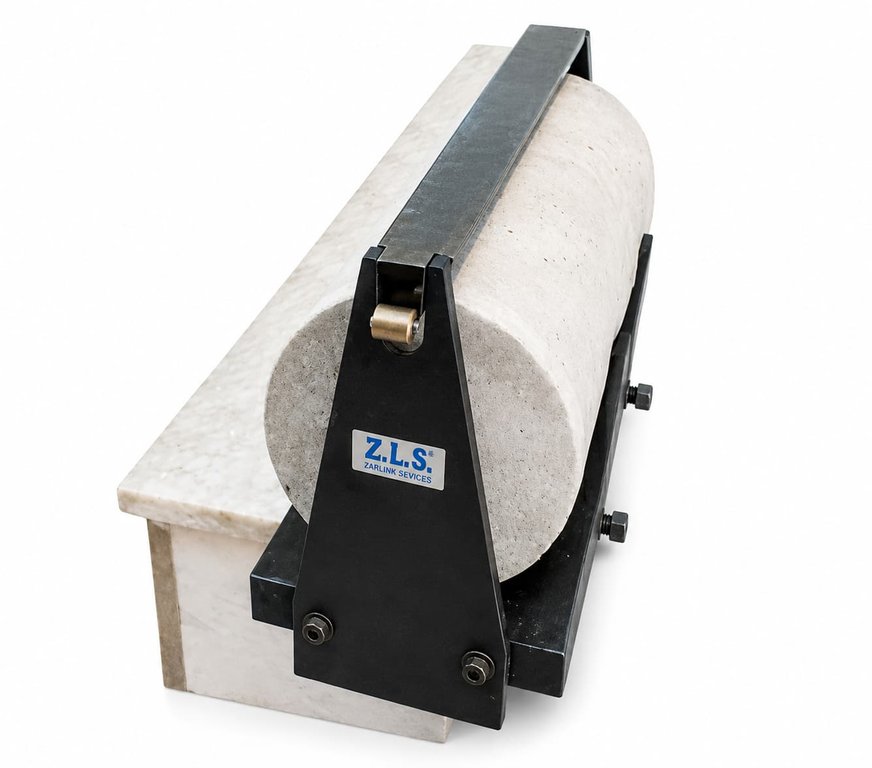

SPLITTING TENSILE ATTACHMENT FOR CONCRETE-IS 516(PART-1)

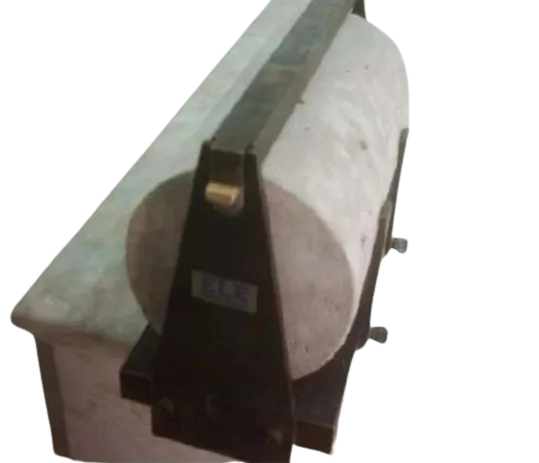

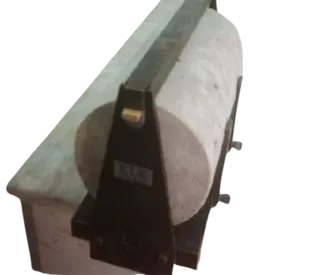

SPLITTING TENSILE ATTACHMENT FOR CTM

Model Number : TM-042-STA

This is an attachment to Compression Testing Machine. Compliance Standards, IS 516 (Part 1/Sec 1) : 2021, IS:5816-1999, EN 12390-6, ASTM C496, BS 1881 (Part 117)


Compliance Standards

IS: 516 – 1959, IS:5816, IS: 1199-1959, SP: 23-1982, IS: 10086-1982, ASTM C496, BS1881, BIS 1565


Details:

  1. Two column steel frame with self-centering base specimen holder
  2. Upper load beam suspended with springs for easy adjustment of the specimen.
  3. Supplied with the packing strips to be inserted between the specimen and the load beams
  4. Split tensile device can easily be placed on lower platen of the CTM Machine using suitable distance pieces.
  5. For testing cylinders of 150 x 150 mm and 150 x 300 mm (diameter x length)
  6. Min thickness that can be tested 50 mm
  7. Max thickness that cab be tested 150 mm
  8. Max Sample length length that can be tested 300 mm
  9. Weight : 35 kg Approx.


Weight (Approx.)

35 kg
