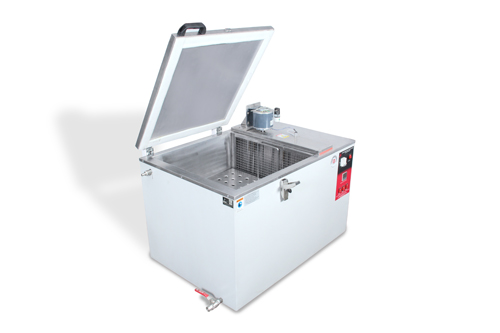

WATER BATH FOR PAVER SECTION-GMP-

Model No: EIE-408.HCS--

Used for paver blocks curing before flexural and tensile splitting test at 27 ±2°C. Referred test method in IS 1734-7: 1983.

More Information
Techincal Specification

Application:

For paver blocks curing before flexural and tensile splitting test at 27 ±2°C.

HEATING + COOLING FACILITY:

Temperature is Controlled from 10°C to 100°C ± 2°C curing temperature.

Can be controlled at 27 °C ± 2 °C for Normal curing or upto 100 ± 2°C For Accelerated curing by boiling water method

Also, it will have capacity for curing by warm water method at temperature 55 ± 2°C.

The whole body of cube mould with the sample of concrete/cement mortar inside is to be immersed in the tank and the Tank is stout enough to bear heavy load on its platform.

Provided with water inlet and outlet valves.

Construction:

Double walled Double walled stainless steel construction with inlet/outlet to fill/drain water, stirrer and pyramid type lid.
Rigid base to accommodate heavy samples for curing and to prevent any damage to equipment/ instruments attached at the bottom.
Outer surface shall be epoxy painted.

Water filling arrangement:

Will have metallic (rust free material) float valve arrangement to ensure auto fill for continues operation with ½” supply line.
Float valve Will be of good quality metallic material for longer life

Operating conditions:

The equipment will be capable of maintaining water temperature at 27±2°C without any error and capable of achieving uniform temperature and will be capable of achieving uniform temperature and will be 100% leak proof.

Safety:

There will be proper insulation / water proofing arrangement separating controller circuit area from water bath chamber to prevent steam/moisture entering controller/instrumentation box area.

Spares and AMC service:

Spares will be readily available for ensuring timely maintenance.

List of spare parts (with specifications) will be provided at time of delivery.

Chamber size (inner: wall to wall)	18 Inch X 18 Inch X 52 Inch (H X B X L)
Chamber volume	268 Ltr
Construction	Double walled
Interior	Stainless Steel S.S.- 304 Grade Material (22 SWG)
Exterior	Stainless Steel SS Grade 304 (20 SWG)
Insulation	Special grade glass wool for purpose of insulation to avoid heat and cool losses.
Insulation thickness	50 mm
Temperature Controlling System	The controlling will be PID-SSR based and cut off shall be set in PID controller.
Heating elements	At least 2 nos
Sensors Range	Will be higher than operating range.
Indicator light	Indicator light will be provided to show the heating/cooling status
Operating switches	Provision for switch to turn off heating /cooling yet showing current temperature of water.
Accuracy	Accuracy to maintain conditions with uniform temperature within ±1℃ or better
Power Supply	Single phase, 230 V, 50 Hz
Range	Equipment will be capable of maintaining temperature of 27±2°C during any time of the year.
Least count	0.1°C or better
Accessories	will be supplied with voltage stabilizer of adequate capacity suitable for use
Drain Valve	For quick drain there will be provision of Ø 1” ball valve.
Auto stop features	Auto stop feature will be there to stop the machine at predefined time.
Additional sensor	There will be provision for additional sensor (but plugged) for data logger installation
Cover for water bath	Cover for water bath will be hinged at longer edge along with arrangement for holding the cover in open position.
Forced circulation	Inbuilt stirrer for uniform temperature distribution with switch to turn it on/off as per requirement.
Calibration	Valid calibration certificate from NABL Accredited Lab (with NABL logo) will be submitted.
Standard color code for equipment	Blue
