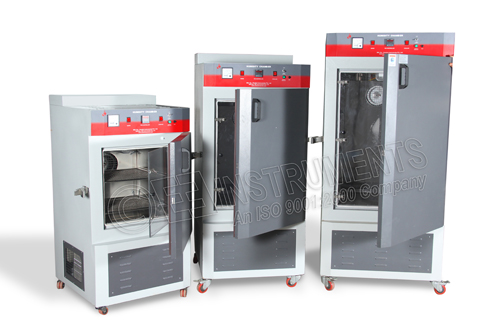

CLIMATIC (ENVIRONMENTAL) CHAMBER

Salient Features

• Heat proof and electrical shock resistant design
• Automatic cycle commencement on press of a button
• Digital display of humidity and temperature data
• Ramp & soak profile controller
• Capacitance type Humidity sensor enables direct display of RH and temperature
• Highly ergonomic door handle with unique key lock

Heating system

Easily removable U-shaped jacketed air heaters connecting with Teflon wires. Interlocking for preventing the operation of heating system without air circulation. The heaters will be placed in the conditioning plenum such that there is no direct radiation from the heaters on to the test specimen.

Refrigeration system

Air-cooled semi sealed refrigeration system. Ozone friendly refrigerant. The system is provided with adequate safety protection against excessive and low pressure and temperature. Pressure gauges provided to indicate suction and head pressure. HP/LP cutoff switch and overload protection for the system. Oil separators with oil return & hot gas defrost system. All refrigeration components like expansion valve, driers, oil separators, pressure gauges and vibration eliminators provided. Reputed company make like Danfoss - Denmark, Wika - Germany.

Door & Gasket

Robust type hinges fitted on the right hand side of the chamber with front opening single door.  Leak proof double lined silicon gasket will be provided. The inner surface of the door will be provided with pre - polished stainless steel and will be mounted such that conduction is avoided.

Viewing window

Separate observation door or Multilane viewing window incorporated within the chamber door

Validation Port Hole

40 mm diameter, port hole provided with removable silicon sealed cap.

Electrical controls

Relays, Contactors, SSR, MCB. Mains Switch, Fan control switch, compressor ON/OFF switch with indicator, Dry heater switch with indicator, Trip indicators with Alarming (buzzer) system for safe and ease of operation.

Electrical Circuitry Wires

Inner circuitry wires with individual number tags for ease of servicing and maintenance

Temperature Sensor

PT-100 Sensor

Humidity Sensor

Capacitance type Rh sensor

RS 232 or 485 communication port (Optional At Extra Cost)

RS - 232 or RS - 485 communication port provided to operate the chamber through PC as well as to log and modify the data in 21 - CFR Compliance software. Tubular display & graphical display provided with complete history printing & storing facility.

Safety Provisions

• High and low temperature safety with audio visual Warning  signal for the protection of the specimen.
• Overload protection for all the electrical components used in the chamber as well as control panel.
• Complete electrical and refrigeration system conforming to the statutory regulatory requirements against safety, hazards, accidents and pollutions.
• Over temperature thermostat & thermal fuses provided for Heating system.
• Pressure gauges for measuring the refrigerant and service manifolds provided in the refrigeration system.

Warranty

Unconditional warranty against faulty workmanship for 1 year at site from the date of installation of the equipment.
