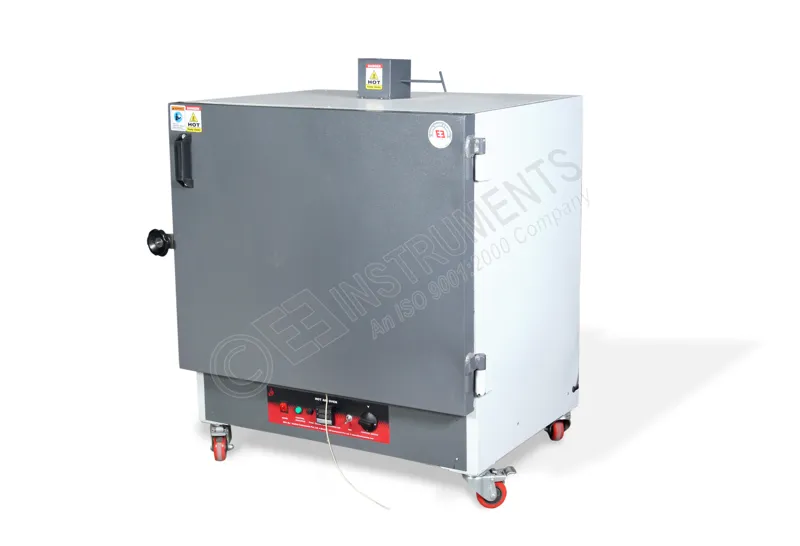

Construction Details:
IN THIS SYSTEM, THERE IS ONE PATH OF CIRCULATING HOT AIR BETWEEN THE INNER CHAMBER AND INSULATION. FORCED AIR MOVED BY THE MOTORISED BLOWER IS CALLED PERFECT SYSTEM. IT RESULTS IN MINIUMUM TEMPERATURE VARIATION AT ANY GIVEN POINT IN WORKING SPACE.
- Triple walled design for precise temperature control and excellent uniformity.
- Heaters mounted in preheating chamber at sides of oven.
- 100 mm thick insulation on all sides.
- Equipped With Microprocessor based Digital Temperature controller and forced Air circulation System.
- Forced Air Moved By The Motorized Blower Is Called Perfect System. It Results In Minimum Temperature Variation At Any Given Point In Working Space.
- Inner chamber is fabricated from Stainless Steel S.S - 316 Grade
- Outer Chamber is fabricated from stainless steel material S.S. - 304 Grade.
- Operates on 440 Volts, AC, Three Phase, Power supply
|
Chamber Size |
60 x 60 x 60 cm (H x W x D) |
|
Chamber volume |
216 Liters |
|
No. Of Shelves |
03 Nos |
|
Rating |
4.5 KW |
|
Outer Chamber |
Stainless steel Material (S.S.- 304 Material) |
|
Inner chamber |
Fabricated from Polished Stainless steel Material (S.S.- 316 Material) |
|
Insulation |
About 100mm thick glass wool insulation |
|
Heater |
Heating elements placed at sides for uniform heat Distributio |
|
Temp. Range |
100°C - 350°C |
|
Temp. control |
Microprocessor based Auto-Tune Digital PID Temperature Indicator Cum Controller |
|
Temperature Accuracy |
± 1°C or better |
|
Temperature Resolution |
± 0.1°C |
|
Temp display |
LED Display |
|
Temp sensor |
PT-100 probe |
|
Air ventilation |
Adjustable air ventilation mounted at top |
|
Operation |
Three Phase, 440 Volts, 50 Hz, AC Supply |
|
FAC |
With built-in forced air circulation arrangement for uniform heat distribution inside the working chamber |
|
Standard Supply |
Perforated and adjustable S.S. trays, Pilot indicating lamps, ON/OFF switches, Cord wire and power plug. |
|
Shelves |
S.S. crimped wire mesh Shelves to withstand heavy load and to offer minimum resistance to air circulation for better heat distribution |
|
Additional Features |
Provision to add more shelves, as per requirement of test - Adjustable Shelves to place test samples or Glass wares of varying dimensions |
