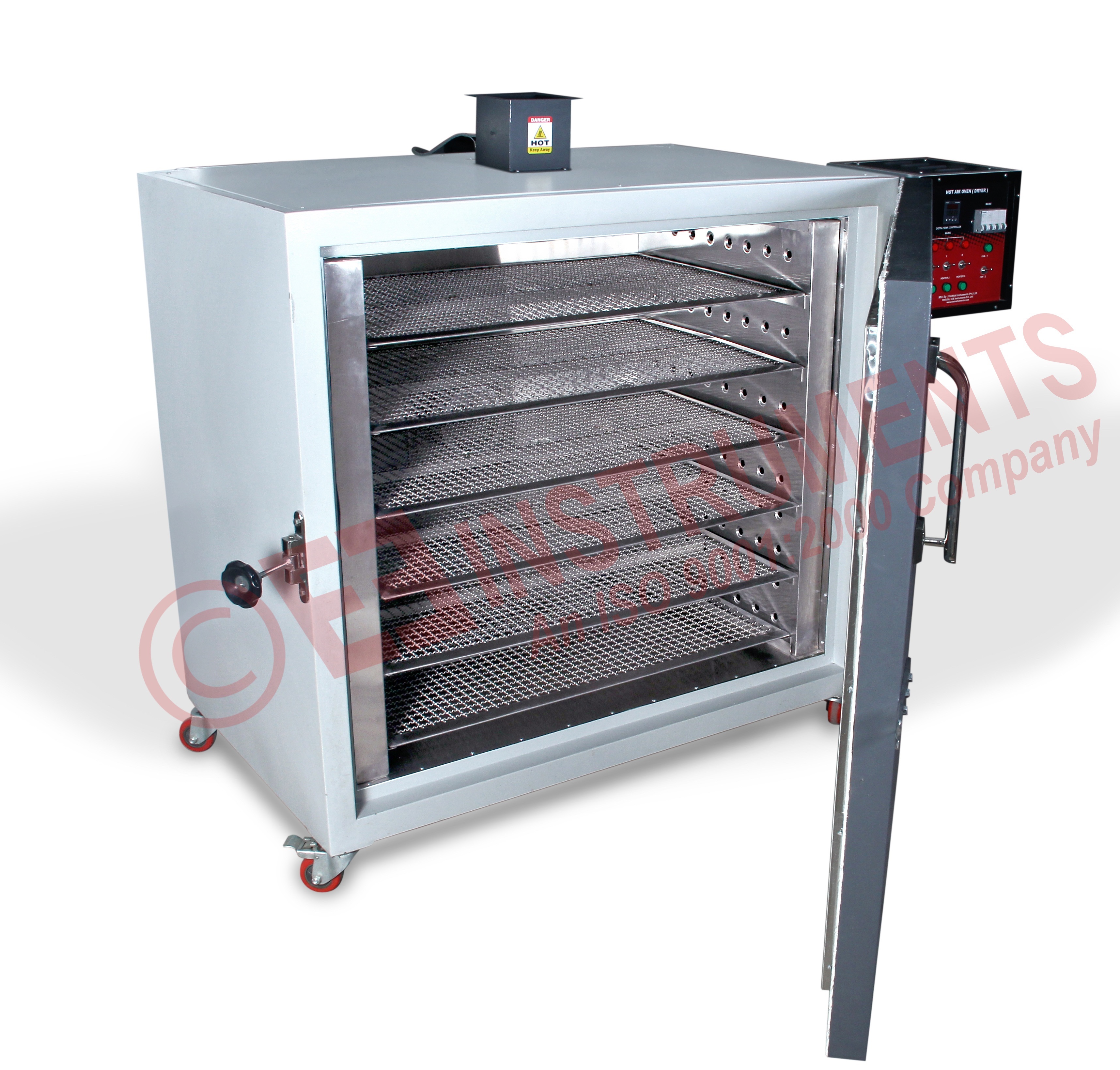

HOT AIR OVEN - DIGITAL-100X100X100-250C-INNER OUTER S.S.304
Salient Features :
- Internal circuit wiring as per CE Norms
- 65mm high density Glass wool insulation on all sides to offer minimum chamber heat loss
- Oven is fitted with heating elements on all three sides, ensuring uniform temperature distribution throughout the working chamber
- Sealed and enclosed heaters to working chamber for minimum heat loss
- Air heaters placed in the air path created at the back for uniform heating and uniform heat distribution Temp. Range.
- Special heavy duty Stainless steel lock and door hinges with spring and roller mechanism
- Stainless steel crimped wire mesh Shelves to withstand heavy load and to offer minimum resistance to air circulation for better heat distribution
- Provision to add more shelves, as per requirement of test - Adjustable Shelves to place test samples or Glass wares of varying dimensions
- Adjustable air ventilation mounted at top
- Operation on 220/230 Volt, 50 Hz, Single phase, AC Supply
- With built-in forced air circulation arrangement for uniform heat distribution inside the working chamber
- Complete with pilot indicating lamps, 2 meter cord wire and power plug.
Optional accessories At Extra Cost:
- Soak timer @ Rs. 2000.00
The timer will be ON automatically as soon as the set temp. has been attained and will cut off the current to heaters after pre set timing, Range 999 Hours or 0‑59 minutes (selectable).
|
Working size |
100 x 100 x 100 cm ( H x W x D) |
|
Chamber volume |
1000 ltr. |
|
No of trays |
03 Numbers |
|
Rating |
4.0 KW |
|
Outer Chamber |
Made of Stainless Steel S.S. 304 . |
|
Inner chamber |
Made of Stainless Steel S.S. 304 mirror polished material. |
|
Temperature Range |
50 °C to 250 °C |
|
Exterior body |
Made of Stainless Steel S.S. 304 . |
|
Insulation |
65mm high density Glass wool insulation on all sides to offer minimum chamber heat loss |
|
Heating element |
Oven is fitted with heating elements on all three sides, ensuring uniform temperature distribution throughout the working chamber |
|
Heater |
Sealed and enclosed heaters to working chamber for minimum heat loss |
|
Temperature Control |
Microprocessor based Auto tune PID Digital temperature indicator cum controller |
|
Heating element |
80/20 nichrome heating elements, ensuring long lasting and continuous heating within the chamber |
|
Control Accuracy |
± 1°C or better |
|
Door lock |
Special heavy duty Stainless steel lock and door hinges with spring and roller mechanism |
|
Shelves |
S.S. crimped wire mesh Shelves to withstand heavy load and to offer minimum resistance to air circulation for better heat distribution |
|
Other provisions |
Provision to add more shelves, as per requirement of test Adjustable Shelves to place test samples or Glass ares of varying dimensions |
|
Air ventilation |
Adjustable air ventilation mounted at top |
|
Forced Air circulation |
With built in forced air circulation arrangement for uniform heat distribution inside the working chamber |
|
Complete with |
Complete with pilot indicating lamps, 2 meter cord wire and power plug. |
|
Operation on |
220/230 Volt, 50 Hz, Single phase, AC Supply |
|
Overall Dimensions |
1205 X 1335 X 1535 (L X W X D) mm |
