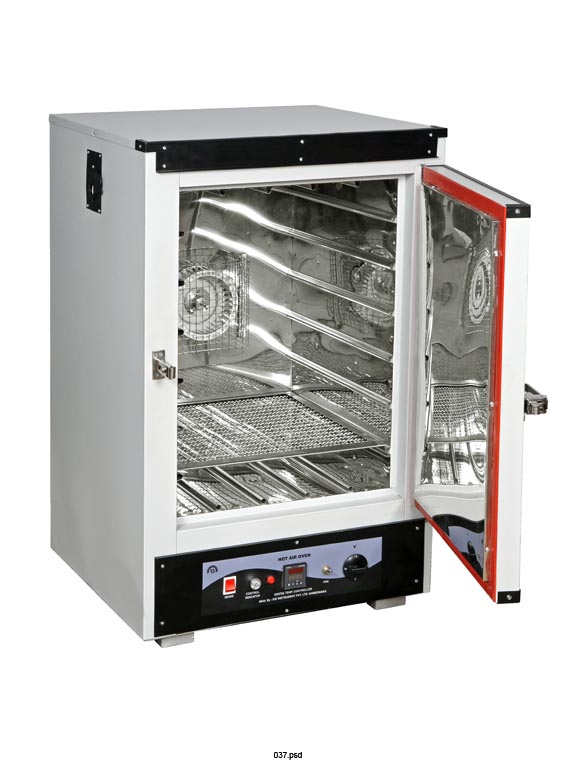

Salient features
- Internal circuit wiring as per CE Norms
- 65mm high density Glass wool insulation on all sides to offer minimum chamber heat loss
- Oven is fitted with heating elements on all three sides, ensuring uniform temperature distribution throughout the working chamber
- Sealed and enclosed heaters to working chamber for minimum heat loss
- 80/20 nichrome heating elements, ensuring long lasting and continuous heating within the chamber
- Special heavy duty Stainless steel lock and door hinges with spring and roller mechanism
- Stainless steel crimped wire mesh Shelves to withstand heavy load and to offer minimum resistance to air circulation for better heat distribution
- Provision to add more shelves, as per requirement of test - Adjustable Shelves to place test samples or Glass wares of varying dimensions
- Adjustable air ventilation mounted at top
- Operation on 220/230 Volt, 50 Hz, Single phase, AC Supply
- With built-in forced air circulation arrangement for uniform heat distribution inside the working chamber
- Complete with pilot indicating lamps, 2 meter cord wire and power plug.
|
Inner working size |
45 X 45 X 45 CM (H X W X D) |
|
Chamber volume |
91 liter. |
|
No. of trays |
2 No. (Additional shelf at extra cost) |
|
Rating |
1.5 KW |
|
Outer Chamber |
CRC powder coated |
|
Inner chamber |
Made of Stainless Steel S.S. 304 ‑ mirror polished material. |
|
Temperature Range |
50°C to 250°C |
|
Controlling System |
Microprocessor based Auto tune ‑ PID controller |
|
Control |
± 1°C or better |
|
Power Consumption |
220/230 Volt, 50 Hz, Single phase, AC Supply |
