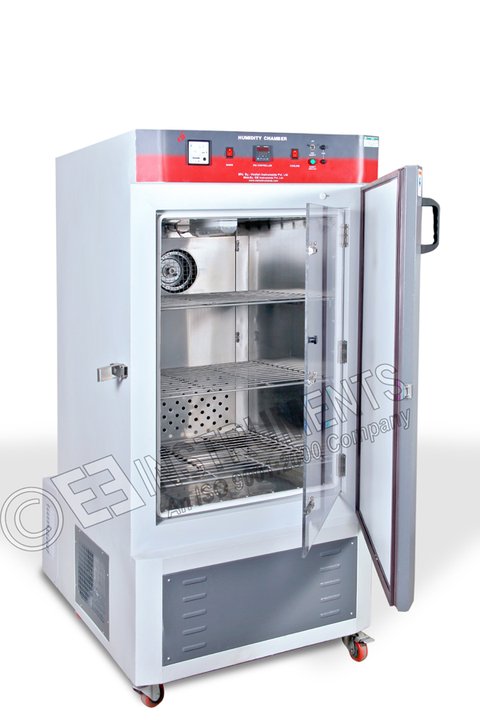

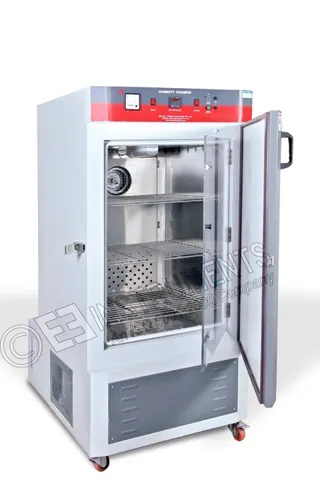

Double Walled, Inner SS 304, Outer made of Mild steel material duly powder coated, 65 mm thick PUF Insulation; Full length inner glass door for clear inner view, Outer door with Magnetic Gasket & Lock. Forced air circulation for uniform temperature throughout the chamber. Dual preset electronic Digital Temperature Controller Cum Indicator. Temperature Range : 10°C to 60°C ± 0.5°C; Humidity Range from atmospheric humidity 40% to 90% RH Controlled by Digital Display Controller (Direct RH Indicator) ± 5% RH, Working on 230 Volts, AC, single phase.
|
Chamber Size |
125 x 90 x 90 cm (Inner chamber) |
|
Chamber volume |
1012 Liters |
|
Inner chamber |
Stainless Steel S.S. - 304 Grade |
|
Exterior body |
Mild Steel |
|
Exterior Body Paint |
Powder coated in attractive shades |
|
No of trays |
04 Shelves |
|
Temperature Range |
10° C to 60° C |
|
Temperature Accuracy |
± 0.5°C or better |
|
Temperature Resolution |
0.1° C |
|
Temperature Uniformity |
± 2° C |
|
Temperature Measurement |
Through Pt - 100 type RTD sensor |
|
No. of Temperature Sensors |
01 number |
|
Humidity Range |
40% RH to 90% RH |
|
Humidity Accuracy |
± 3% RH |
|
Humidity Uniformity |
± 5% RH |
|
Humidity Measurement |
Through Capacitance type RH Sensor |
|
No. of Rh Sensors |
01 number |
|
Chamber Illumination |
With 1 LED lights for lesser power consumption |
|
Mobility |
On castor wheels |
|
Power Consumption |
4.5 KW |
|
Dimension (mm) |
1125 X 1550 X 2100 (W X D X H) mm |
|
Weight (Approx) |
325 kg |
