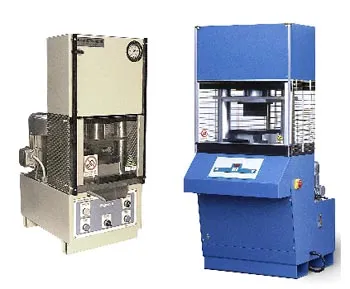

HYDRAULIC (KBR PRESS) - 15 TON - AUTOMATIC-

Name: HYDRAULIC (KBR PRESS) - 15 TON - AUTOMATIC-
Rating: 4.4 (89 reviews)

Model Number : AP-15 (AUTOMATIC)

This is electrically operated version of the manual press. The pumping is done by gearmotor drive. Simply press a button & it will start building pressure & will stop autom- atically at set pressure by means of a pressure switch.

More Information
Techincal Specification

Features :

The proven design of the hydraulic section of manual press is retained.
The gear drive machanism along with the motar develop slow, steady pressure without jerks.
Auto release after load.
Digital pressure indicator
Pressure can be set digitally for desired pressure cut off.
Manual stop provided to override the auto stop required.
Leek proof design.
Easy to operate.
Better pellet Quality.

Operation	Hydraulic Press with electrical drive.
Maximum Hydraulic Press	15 Ton.
Piston Size	90 mm Die
Piston Travel	50 mm
Pressure Cut-Off	ON / OFF with Auto stop watch.
Dimensions	400 mm X 280 mm X 480 mm.
Weight	100 Kg.
Power	230V, 50Hz
