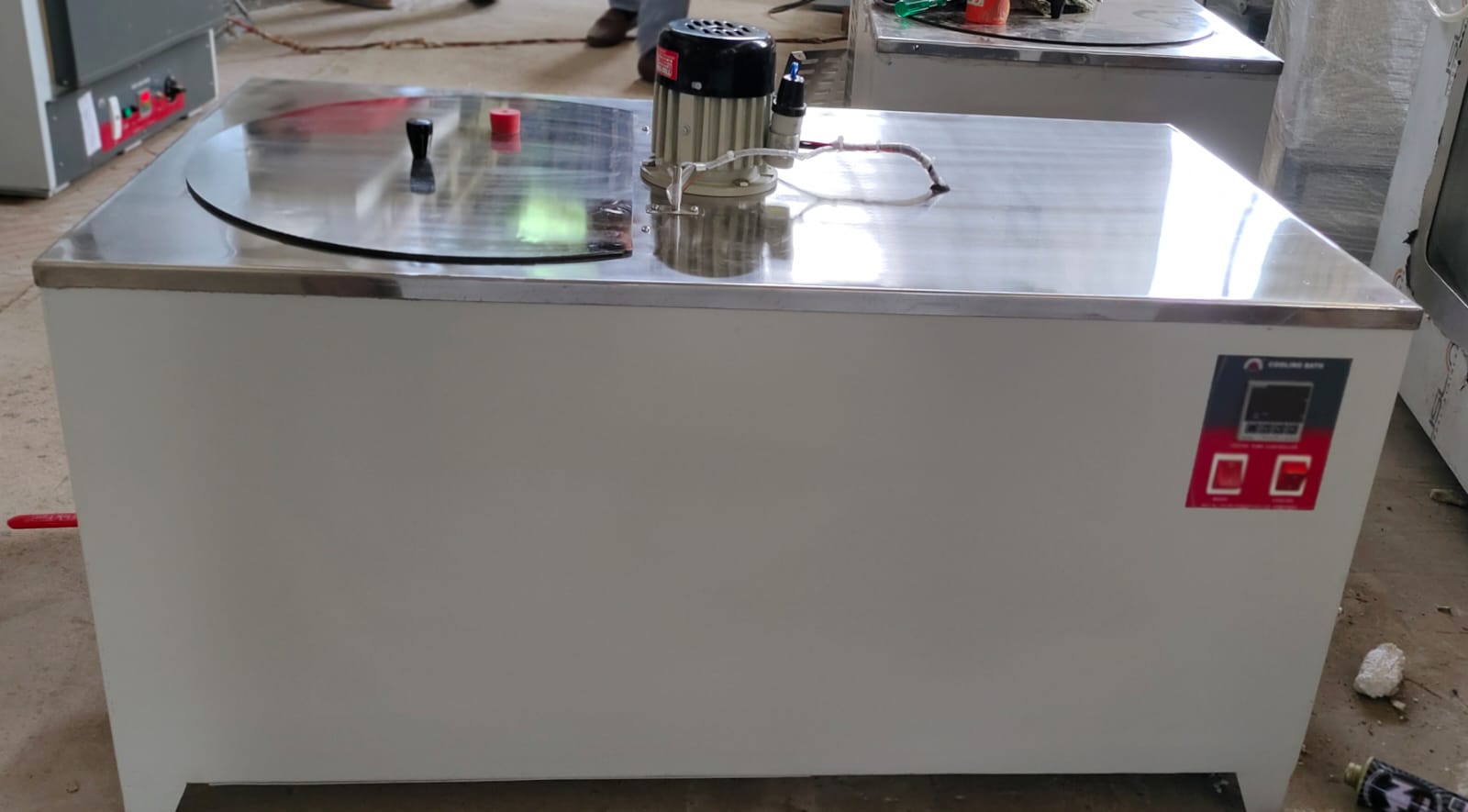

The bath is double walled, inner chamber consisting of thick polished stainless steel with cooling coil duly soldered on the outside of the same to ensure perfect cooling effect to achieve low temp. up to +5°C. The outer wall is of thick PCRC sheet duly pre-treated and powder coated for longer life. The hollow space between the inner chamber and outer wall is filled with high grade insulation of thickness 75 mm to prevent loss of temperature. The refrigeration system consisting of Hermetically sealed compressor for minimum noise level and smooth operation, Coupled with other quality components, it ensures a high degree of reliability over a long period. Heating system comprises of immersion type heating element for attaining above ambient temperature. The unit is provided with a high performance circulation stirrer to circulate the inside fluid to ensure a constant and uniform temperature throughout. Temperature range 5°C to 50°C with PID digital temperature controller cum indicator. Chamber size. : 425 mm dia x 325 mm height.
Construction |
Double walled |
Inner chamber |
Stainless steel S.S. - 304 |
External body |
Mild steel |
Exterior Body Paint |
Powder coating |
Insulation thickness |
75mm |
Temperature controller |
Microprocessor based PID digital controller |
Temperature Accuracy |
± 0.5 °C |
Temperature Range |
5 °C - 50 °C |
Temperature Resolution |
0.1 °C |
Temperature Uniformity |
± 1 °C |
Heating element |
Immersion heaters |
Refrigeration System |
Hermetically sealed ISI marked KIRLOSKAR OR EQUIVALENT make compressor for minimum noise level and smooth operation |
Refrigerant |
R-134A Gas |
Motorized Stirrer |
For uniform temperature distribution |
Stirrer material |
Stainless Steel S.S. - 304 |
Chamber Size |
425 mm dia x 325 mm height |
Chamber volume |
20 Liters |
Overall Dimensions |
1100 X 430 X 580 (L X W X D) mm |
