KINEMATIC VISCOSITY BATH (BELOW AMBIENT)-FOR 6 VISCOMETERS-

KINEMATIC VISCOSITY BATH (BELOW AMBIENT)-FOR 6 VISCOMETERS-

Model Number : EIE-PTLT-109BA6



Compliance with following International Standards :

ASTM D445, IS 1448 (P-25)


Application :

Used for determination of kinematic and intrinsic viscosity Of fuels, lubricants & petrochemical raw materials at constant temperatures in accordance with ASTM D 4603 and other equivalent methods


Annexure :

  • Microprocessor based circuitry assures precise, reliable temperature control within specified tolerances throughout the operating range of the bath i.e. 10 °C to ambient temperature.
  • Dual digital displays show set and actual bath temperature
  • Simple push button controls and digital display permit easy setting and monitoring of bath temperature.
  • Bath accommodates 06 Nos glass capillary reversion viscometers of various types at a time
  • Viewing the viscometers is made easy by glare‑free fluorescent illumination.
  • Temperature control uniformity is assured by means of motorized stirrer, which provides complete circulation without turbulence.
  • Frost free glass window for low temperature bath
  • Control panel is mounted on a side of the bath
  • Complete exterior body is finished with attractive powder coated paint


Technical Specifications of Refrigeration System:

  • Refrigeration system : Emerson/Danfoss Make refrigeration system
  • Compressor : Hermetically Sealed Compressor
  • Condenser : Fin & Tube type Air‑Cooled Condenser
  • Refrigerant : R134a


Optional Accessories At Extra Cost :


  • Voltage Stabilizer (Highly recommended)
  • Temperature calibration certificate as per ISO/IEC : 17025 (NABL)

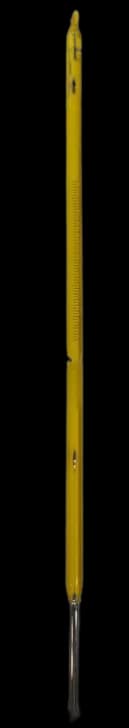

  • Thermometer glass ‑ IP 30C (‑23.6 / 26.4°C x 0.05°C ) ASTM 45C:
  • Glass U Tube Viscometer to be purchased at extra cost
  • viscometer rack for safe keeping of U Tube Viscometer - can accommodate 6 tubes on a bench top


Note


Use of RO/DM Water as a bath media is mandatory for long lasting performance of Heaters. Warranty vois in case of non compliance

Working Chamber Size

370L x 260 W x 350 D (mm)
