Salient Features

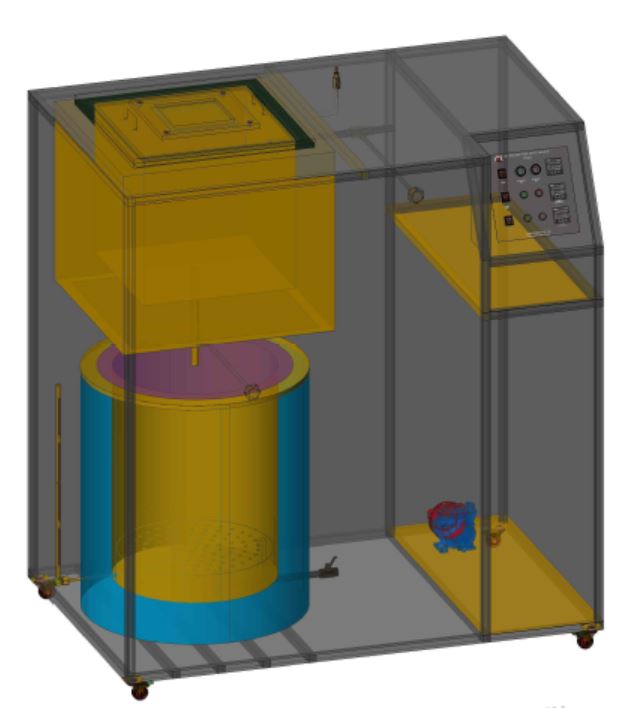

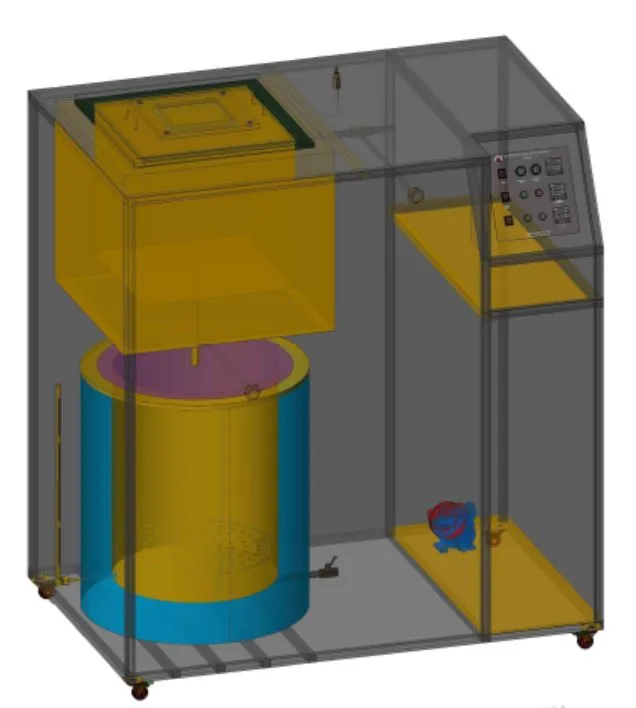

- Oil Absorption Bath with Vacuum Drying Chamber
- Fitted with Vacuum Drying Chamber at top
- Fitted with Oil Absorption Bath at the bottom side
- Both the chambers are connected through valve and dedicated transfer pipelines.
- Control panel to operate both the chambers is mounted on one side.
- Control panel consists of 02 Nos Digital Temperature controllers for Vacuum Drying chamber & Oil Bath
- Control panel consists of 02 Nos Digital Vacuum Controllers for Vacuum Drying chamber & Oil Bath
- Control panel also consists of Mains switch and LED Indicator for various processes.
- Both vacuum drying chamber & Oil Bath are connected with separate vacuum pumps
- Entire unit is mounted on castor wheels for easy mobility
- Aesthetic exterior appearance
- Ease of maintenance
- Ease of operation
Note
Vacuum pump for Vacuum drying chamber and Oil absorption bath shall be ordered separately.
Vacuum drying chamber |
|
Vacuum drying chamber dimensions |
500 x 500 x 500 mm (W x D x H) |
Vacuum drying chamber Volume |
125 Liters |
Construction |
Double walled Construction |
Inner chamber |
Fabricated from polished stainless steel material S.S. - 304 grade |
Exterior body |
Fabricated from mild Steel material |
Exterior Body Paint |
Powder coated in attractive shades |
Insulation |
Glass wool insulation between inner chamber and exterior body to prevent direct thermal heat loss |
Inlet & outlet connection |
For oil filling and draining the chamber |
Door arrangement |
Front loading type with Observation window |
Temperature Range |
From 5 °C above ambient to 150 °C |
Heating |
Heated by Immersion heaters installed within the inner chamber |
Temperature controller |
Microprocessor based Auto-Tune PID Digital Temperature controller cum indicator |
Temperature Resolution |
0.1 °C |
Temperature Accuracy |
± 2 °C |
Temperature sensor |
PT-100 |
Vacuum range |
0.05 mbar to 25 mbar |
Vacuum controller |
Digital Vacuum controller |
Vacuum transmitter |
To sense & display the vacuum generated by the vacuum pump set point |
Vacuum release valve |
Fitted on top side |
Operation on |
230 Volts, 50 Hz, Single phase, AC Supply |
Oil Bath |
|
Chamber Size |
520 mm dia x 600 mm height |
Chamber volume |
127 Liters |
Construction |
Double walled Construction |
Inner chamber |
Fabricated from polished stainless steel material S.S. - 304 grade |
Exterior body |
Fabricated from mild Steel material |
Exterior Body Paint |
Powder coated in attractive shades |
Thermal Insulation |
Glass wool insulation between inner chamber and exterior body to prevent direct thermal heat loss |
Oil filing valve |
At top side |
Oil Drain valve |
At bottom side |
Temperature Range |
From 5 °C above ambient to 150 °C |
Heating |
Heated by Immersion heaters installed within the inner chamber |
Temperature controller |
Microprocessor based Auto-Tune PID Digital Temperature controller cum indicator |
Temperature Resolution |
0.1 °C |
Temperature Accuracy |
± 2 °C |
Temperature sensor |
PT-100 |
Vacuum range |
10 mbar |
Vacuum controller |
Digital Vacuum controller |
Vacuum transmitter |
To sense & display the vacuum generated by the vacuum pump set point |
Vacuum release valve |
Fitted on top side |
Perforated Platform |
To hold the sample |
Oil level indicator |
to indicate the oil level at all the time |
