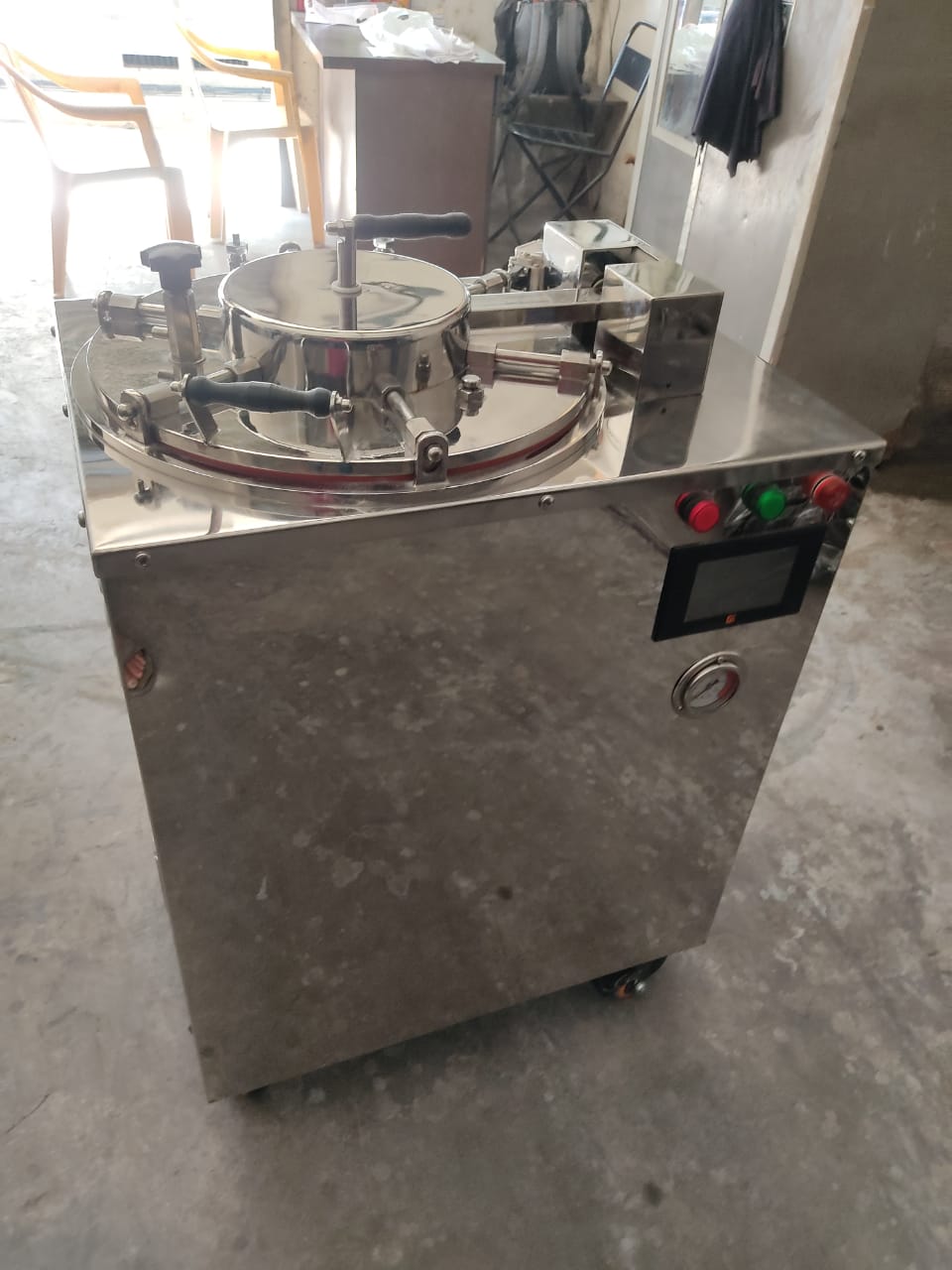

SINGLE LEVER LOCK GMP AUTOCLAVE-FULLY AUTOMATIC-45 X 60 CM-95 LITERS

RECTANGULAR SHAPE VERTICAL AUTOCLAVE-GMP-SINGLE LEVER LOCK-FULLY AUTOMATIC-45 X 60 CM (D X H)

Model Number : EIE-206RSLLGFA95

None


Salient Features

  1. Top loading Autoclave with Single Lever Locking facility
  2. Rectangular shape exterior body structure
  3. SS - 304 cylindrical shell with ASME standard Bottom dish for 100% Drain
  4. Exterior body is also fabricated from S.S. 304 Material
  5. Single chamber for steam generation and water storage
  6. Control panel is mounted in the frame with necessary electronics
  7. Fully automatic Digital PID controller
  8. Displays current temperature & set temperature with remaining cycle time
  9. Automatic Air Purging
  10. Automatic Steam Exhaust at EOC (End Of Cycle)
  11. Process will not start unless lid is not locked fully and lid will not open when chamber is under pressure.
  12. Caster wheel for easy movement
  13. Supplied complete With S.S. - 304 wire mesh carrier
  14. Supplied complete with Calibration certificate with traceability
  15. Provision for Qualification documents (DQ, IQ, OQ, PQ) (At extra cost)


Solenoid valve:

  1. Initial automatic air purging cycle
  2. Automatic steam exhaust (Depressurized) at the end of cycle.


Safety features:

  1. Double safety radial locking arrangement
  2. Low water level heater safeguard.
  3. Low water level cut off system.
  4. Safety high pressure release valve (Spring loaded mechanical valves)
  5. Safety high temperature cut off.


Mode of Heating :

Electrically heated by special flange type/immersion type heaters


Operation Type

Fully Automatic Operation

Temperature controller

Microprocessor based Digital Temperature Indicator cum Controller

Display

Digital Display

Temperature sensor

PT - 100 Sensor

Pressure Range

15 to 22 PSI, factory set at 15 PSI

Temperature Range

121°C to 125 °C

Temperature Resolution

0.1 °C

Temperature Accuracy

± 0.5 °C

Working Chamber Size

45cm x 60cm (Dia x Height)

Volume

95 Liters

Power

Rating 1.5 KW

Operates on

230 Volts, 50 Hz, AC Supply

Sterilization timer

In built digital timer; timer can be adjusted as per sterilization load requirement

Safety Valves

Solenoid valve for automatic steam exhaust, Manual Preset Safety Valve, & Extra safety valve, Manual release valve, Manual Drain Valve
