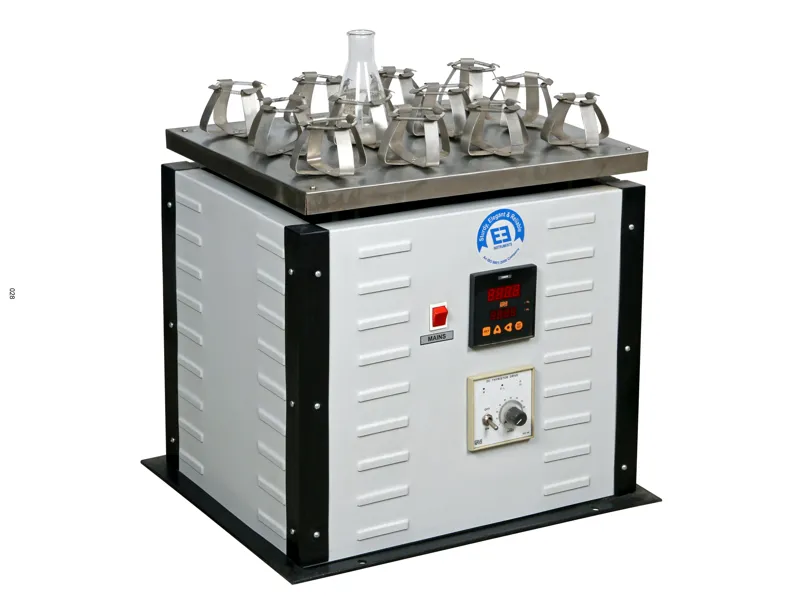

ROTARY SHAKING MACHINE FOR FLASKS - PLATFORM SIZE 48"X 48" - 25 FLASK OF 5000 ML
Model Number : EIE-113DP48
The driving mechanism is enclosed in a mild steel sheet cabinet beautifully painted. The shaker is fitted with DC Motor with electronic speed regulator. The DC Motor will ensure continuous work and precise speed control. The shaking speed will be 50-200 RPM approx. The S.S.304 top platform have S.S clamps to hold conical flask in between them. WITH DIGITAL RPM INDICATION , Working on 230 V AC single phase . Suitable for 25 Flasks X 5000 ml Supplied with out S.S.Clamps which are available at extra cost and quoted separately.
ROTARY SHAKING MACHINE FOR FLASKS - PLATFORM SIZE 48"X 48" - 25 FLASK OF 5000 ML
| Shaker Construction | Single Wall construction |
|---|---|
| Top chamber | Fabricated from polished stainless steel material S.S. 304 grade |
| Exterior body | Fabricated from Mild steel material |
| Paint | Powder coating in attractive shades |
| Shaking | Achieved by DC motor with DC Drive |
| Motor RPM | 50 -200 RPM (Shaking speed) |
| Motor speed display | Digital RPM Indicator (Shaking speed display) |
| Speed control | By electronic Speed Regulator DC Drive |
| Shaking racks material | Manufactured from polished stainless steel material S.S. 304 Grade |
| Platform Size | 48” x 48” (90 x 90 cm) (L x W) |
| Power Consumption | 1.5 KW |
| Operation on | 230 Volts, 50 Hz, Single phase, AC Supply or Three phase 440 volts,50 hz |
