Job Application

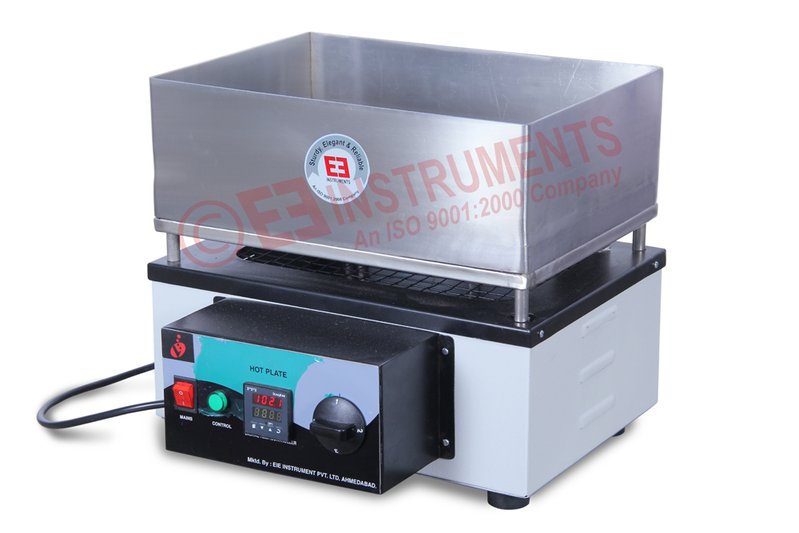

Double walled, inside stainless steel, outside mild steel powder coated, Heated by open type heaters placed at the bottom of the inner chamber. Controlled by Digital temp.controller , Working on 230 V single phase.
Applications :
A sand bath is a common piece of laboratory equipment made from a container filled with heated sand. It is used to provide even heating for another container, most often during a chemical reaction.
Salient Features :
- Aesthetic outer appearance
- Unique design of Hot plate with Grooves ‑ concealed heaters
- 3 stage heat control switch for selection of LOW, MEDIUM or HIGH heat
- Fully air ventilated lower body for minimum heat, even when the top plate is fully heated
- Unique design of Hot plate with Grooves ‑ concealed heaters
- Sealed heaters in Grooves ‑ ensuring long life.
- Uniform heating throughout the Heating Plate
Optional Accessories At extra cost :
- Forced air exhaust for continuous operation
- Thermal gloves for thermal protection.
|
Sand bath chamber size |
45 x 30 x 10 (L x W x H) cm |
|
Chamber volume |
13.50 Liters |
|
Construction |
Double walled |
|
Inner chamber |
Fabricated from stainless steel S.S. - 304 material |
|
Outer Chamber |
Fabricated from mild steel which is powder coated in attractive shades |
|
Top heating plate |
Made up of Cast Iron Material |
|
Temperature Range |
50 °C to 300 °C |
|
Temperature Control |
Microprocessor based Auto-Tune PID Digital temp controller cum indicator |
|
Temperature sensor |
RTD (Pt-100) sensor |
|
Temperature Display |
LED Display |
|
Temperature Accuracy |
± 0.1 °C |
|
Temperature Uniformity |
0.2 °C |
|
Control panel |
Equipped with mains switch, control switch, pilot lamp and Digital Controller |
|
Heating |
Heated by open type heaters placed at the bottom of the inner chamber |
|
Operation on |
230 Volts, 50 Hz, Single Phase, AC Supply |
