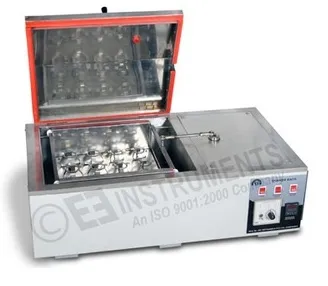

SHAKING WATERBATH-12 X 500 ML-COMPLETE S.S.

SHAKING WATERBATH-12 X 500 ML-COMPLETE S.S.

SHAKING WATERBATH-12 X 500 ML-COMPLETE S.S.
Model No: EIE-405DS60

Double walled, inner and outer chamber made of S.S.304 - fully argon welded Rockwool insulation, Can take 12 flasks of 500 ml or can be customized as per the customer requirements, Digital Temp.and RPM indication, Can be operated in Air or Water. Temp.range from 5 °C above ambient to 99 °C. To and Fro Ocillation of shaking tray, electronic speed controlled between 40-150 oscillation per minute. Further description of item is as per follows.

Double walled, inner and outer chamber made of S.S.304 - fully argon welded Rockwool insulation, Can take 12 flasks of 500 ml or can be customized as per the customer requirements, Digital Temp.and RPM indication, Can be operated in Air or Water. Temp.range from 5 °C above ambient to 99 °C. To and Fro Ocillation of shaking tray, electronic speed controlled between 40-150 oscillation per minute. Further description of item is as per follows.


Applications :

Used for shaking of flasks in indirect water controlled environment

Applications ranging from Pharmaceuticals, Petrochemicals, General Laboratory to textile industries etc.


Salient Features :

  1. Unique design
  2. Aesthetic exterior appearance
  3. Ease of Maintenance and easy to operate
  4. Double walled chamber design
  5. Improved version of waterbath incubator shaker
  6. Can operate in both - Air and Water Media
  7. No leakage of water or no replacement of shaking tray
  8. The bath is ARGON WELDED to ensure lifetime leakage free performance. (No soldering )
  9. Bath is fitted with specially designed dome type hinged lid made of stainless steel material for convenient operation.
  10. Bath Panel consists of 2 pilot LED lamps & on/off switch.
  11. Bath is also equipped with a digital RPM Indicator for indication of shaking speed
  12.  The chamber has an oscillating tray, riding on ball rollers and drive motor with variable speed control.
Construction Double Walled
Inner chamber Fabricated from polished stainless steel material S.S. - 304 grade
Exterior body Fabricated from polished stainless steel material S.S. - 304 grade
Insulation Glass wool insulation between inner chamber and exterior body to prevent direct thermal heat loss
Temperature Range From 5 °C above ambient to 99 °C
Heating Heated by open type Air heaters placed at the bottom of the inner chamber.
Temperature controller Microprocessor based Auto-Tune PID Digital Temperature controller cum indicator
Temperature Stability ± 0.5 °C
Temperature Accuracy ± 0.5 °C
Heater control By control switch installed in the control panel
Heater Status Control indication lamp
Shaking Achieved by PMDC Geared Motor
Motor RPM 40 - 150 RPM
Motor speed display Digital RPM Indicator
Speed control By electronic Speed Regulator
Shaking racks 12 flasks of 500 ml
Shaking racks material Manufactured from polished stainless steel material S.S. - 304 Grade
Bath chamber Size -
Bath Volume -
Power Consumption 02 KW
Operates on 230 Volts, 50 Hz, Single phase, AC Supply
Supplied complete with Top Stainless Steel Pyramidal Lid None
Aesthetic outer appearance None
Unique design None
