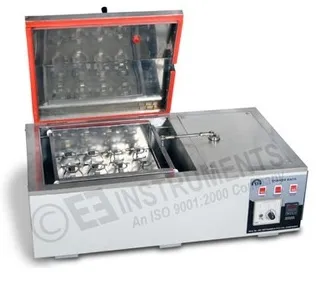

SHAKING WATERBATH - 15 X 250 ML- INNER S.S. - HEATING AND COOLING

SHAKING WATERBATH - 15 X 250 ML- INNER S.S. - HEATING AND COOLING

Model No:

Double walled, inner chamber made of S.S.304 - fully argon welded, Outer chamber of CRC-powder coated, Rockwool insulation, Can take 12 flasks of 100 ml or 15 Flaks of 250 ml or can be customized as per the customer requirements, Digital Temp.and RPM indication, Can be operated in Air or Water. The refrigeration system consisting of Hermetically sealed compressor for minimum noise level and smooth operation, Coupled with other quality components, it ensures a high degree of reliability over a long period. Temp. range from 5 °C above ambient to 60°C. To and Fro Oscillation of shaking tray, electronic speed controlled between 30-200 oscillation per minute. Further description of item is as per follows.

SHAKING WATERBATH - 15 X 250 ML- INNER S.S. - HEATING AND COOLING


  1. Double walled, inner chamber made of S.S.304 - fully argon welded, Outer chamber of CRC-powder coated, Rockwool insulation, Can take 12 flasks of 100 ml or  15 Flaks of 250 ml or can be customized as per the customer requirements, Digital Temp. and RPM indication, Can be operated in Air or Water.
  2. The refrigeration system consisting of Hermetically sealed compressor for minimum noise level and smooth operation, Coupled with other quality components, it ensures a high degree of reliability over a long period. Temp. range from 5 °C above ambient to  60°C.
  3. To and Fro Oscillation of shaking tray, electronic speed controlled between 30-200 oscillation per minute.


Construction Double Walled
Inner chamber Fabricated from polished stainless steel material S.S. - 304 grade
Exterior body Fabricated from Mild steel material
Paint Powder Coating
Insulation PUF insulation between inner chamber and exterior body to prevent direct thermal heat loss
Temperature Range 5 °C to 60 °C
Heating Heated by open type Air heaters placed at the bottom of the inner chamber.
Refrigeration System Hermetically sealed ISI marked KIRLOSKAR OR EQUIVALENT make compressor for minimum noise level and smooth operation
Refrigerant R-134A Gas
Temperature controller Microprocessor based Auto-Tune PID Digital Temperature controller cum indicator
Temperature Stability ± 1°C
Temperature Accuracy ± 0.5 °C
Heater control By control switch installed in the control panel
Heater Status Control indication lamp
Shaking Achieved by PMDC Geared Motor
Motor RPM 30 - 200 RPM
Motor speed display Digital RPM Indicator
Speed control By electronic Speed Regulator
Shaking racks 15 Flask of 250 ml
Shaking racks material Manufactured from polished stainless steel material S.S. - 304 Grade
Bath chamber Size 20” x 18” x 8” cm (W x D x H) approx..
Bath Volume 45 Liters
Power Consumption 02 KW
Operates on 230 Volts, 50 Hz, Single phase, AC Supply
