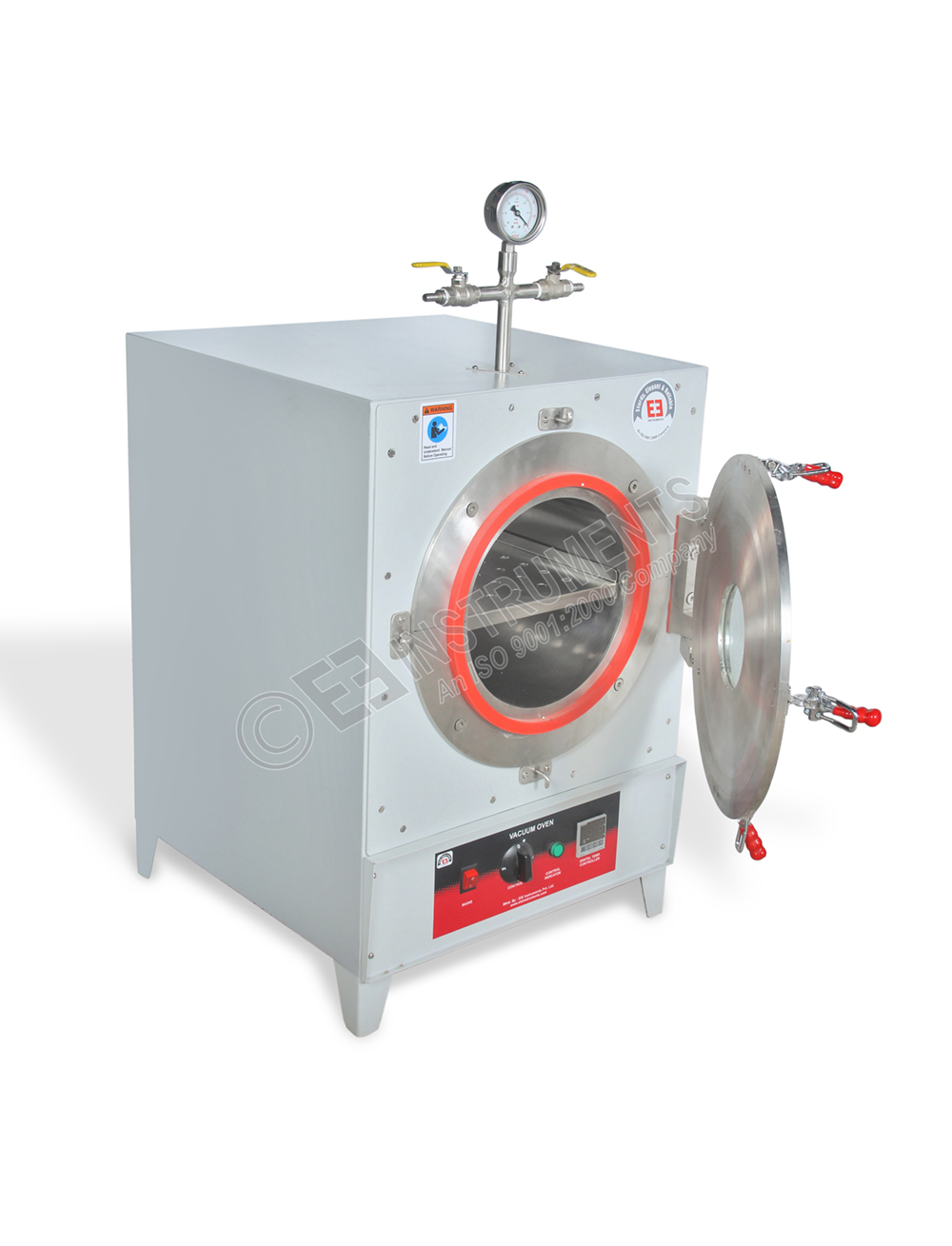

Double walled, working chamber of cylindrical design made of S.S.304 and outside made of mild steel powder coated. The door is of S.S. with centre glass window for viewing without opening the door. Temp.controlled from 50°C - 200°C by AUTO TUNING PID Digital Temp. indicating controller, complete with Vacuum gauge, vacuum release valve, a removable shelf but without vacuum Pump. Working on 230 V AC Single phase.
Salient Features:
- Compact and unique design
- Aesthetic exterior appearance
- Highly reliable results
- Reliable components and accessories to ensure quality
- Gasket door with lock provides temperature safety and stability.
- Toughened glass window for easy viewing of the samples
- Automatic high‑temperature safety cut‑off system.
Note:
- Complete with Vacuum gauge, vacuum release valve, but without vacuum Pump.

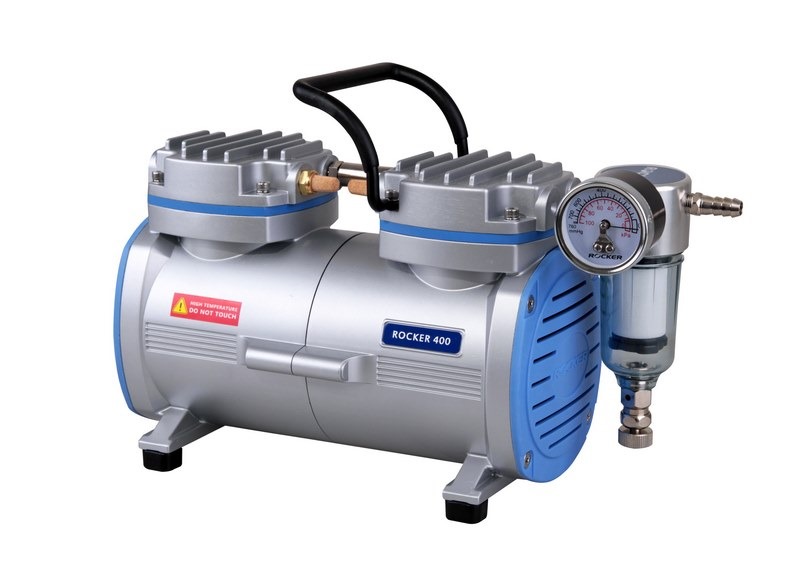

- Client has to arrange vacuum pump on his own or can order optionally.
|
Temperature Range |
50 to 200°C |
|
Temperature controller |
Microprocessor based controller |
|
Control Accuracy |
± 3°C |
|
Chamber volume |
71 Liters |
|
Working Dia (Cm) |
45 cm Dia x 45 cm Depth |
|
Kilo Watt |
2 |
|
Exterior body |
Made of mild steel duly with powder coated |
|
Inner chamber |
Made of thick 304 grade polished stainless steel material |
|
Insulation |
High Quality Glass Wool Insulation |
|
Door material |
stainless steel door with toughened glass viewing window |
|
Door gasket |
Silicon Door gasket |
|
Maximum Vacuum |
760mm Hg with separate vacuum pump |
|
Vacuum Indication |
2" Vacuum gauge |
|
Operates on |
230 Volt, 50 Hz, Single Phase, Ac Supply |
