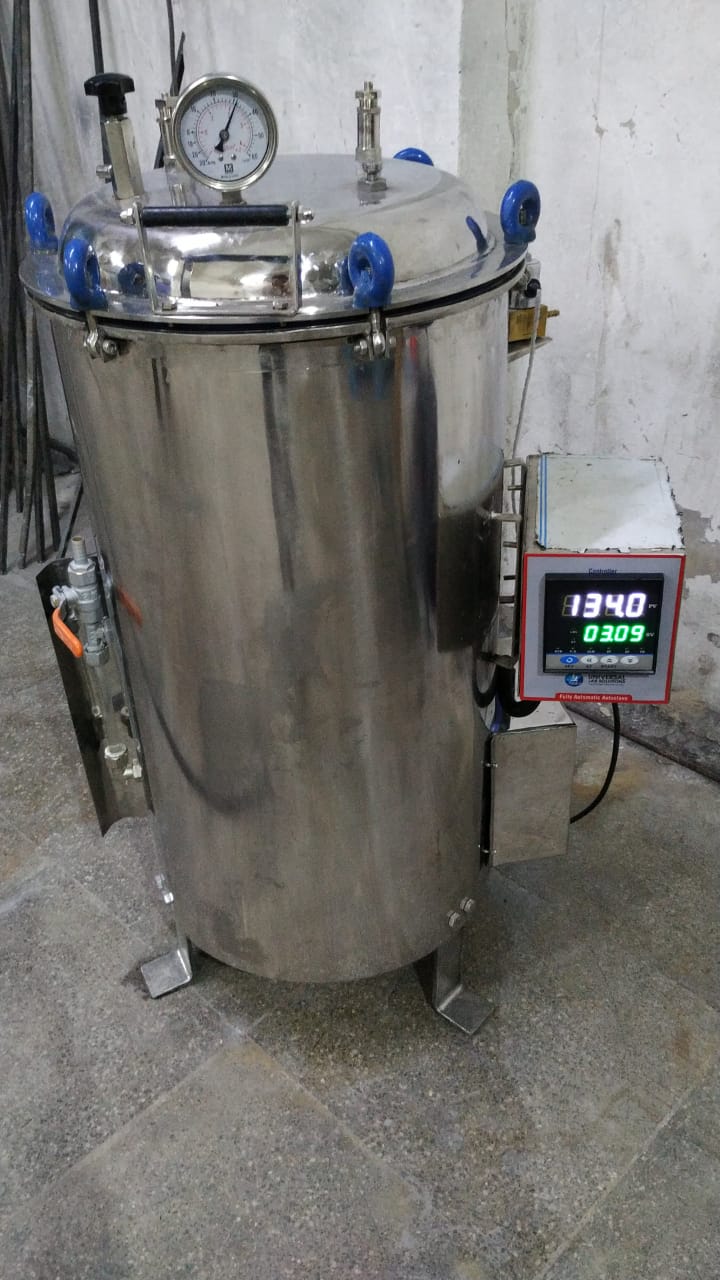

VERTICAL AUTOCLAVE-TRIPLE WALLED-WITH VACUUM BREAKER-GMP-FULLY AUTOMATIC-40 X 60 CM-D X H-

Salient Features:

• Tripe wall design
• Inner chamber, Steam jacket and outer body design for generation of dry steam.
• Working chamber made of stainless steel LM - 304 grade having 2mm thickness.
• Exterior Body is made of stainless steel LM - 304 Grade having 1mm thickness.
• Lid, flange & bottom sheet also made of stainless steel. All joints argon welded.
• Joint less silicon gasket
• Heavy duty industrial flange heater.
• Fully Automatic operation; cycle is commenced by press of START button.
• Vacuum breaker cum Initial air purging cycle; at the beginning air is automatically removed from the chamber.
• Automatic steam exhaust (Depressurized) at the end of cycle.
• Vacuum breaker cycle
• Microprocessor based Digital Temperature Indicator cum Controller.
• PID Controller Controls temperature/pressure precisely at set value.
• Lid fitting pressure gauge 0-30 PSI, safety spring loaded pressure valve
• Complete unit is Hydraulically tested at 60 PSI pressure
• Supplied with Calibration certificate with traceability
• Provided with DQ, IQ, OQ, PQ documentation (AT EXTRA COST)
• Validation ports provided for temperature mapping as standard supply. (On customer request)

Solenoid Valve:

• Initial automatic air purging cycle
• Automatic steam exhaust (Depressurized) at the end of cycle.

Safety Features:

• Low water level heater safeguard.
• Low water level cut off
• Safety high pressure release valve (Spring loaded mechanical valves)
• Safety high temperature cut off.
