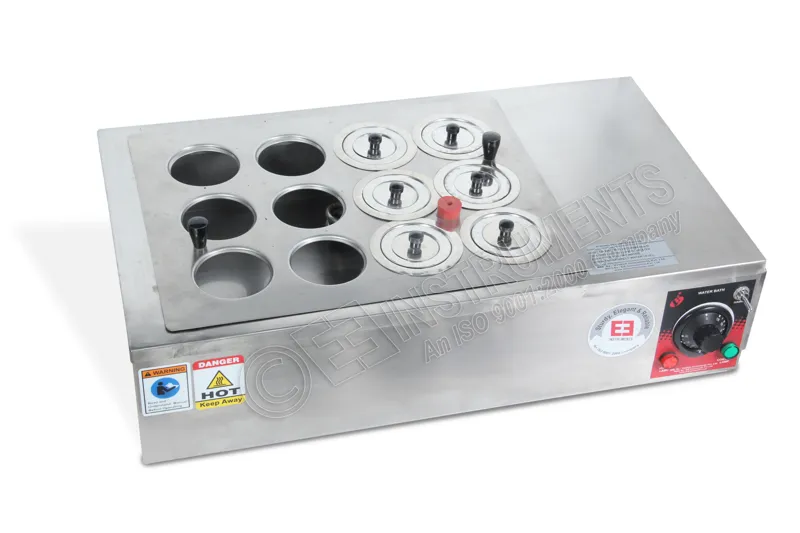

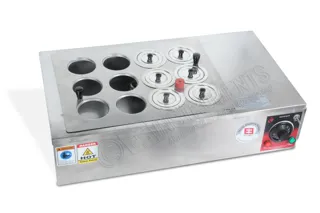

Double walled, Inner and Outer Chamber made of heavy gauge S.S. 304 , fully argon welded, Glass wool insulation, Temp. range 5°C above ambient to 99°C , Temp. control By Auto Tuning dual display PID Digital Controller, with Stainless steel lid with 12 Holes to accommodate 12 S.S. dye pots of 500 ml. Complete with power plug with cord wire, working on 230 V AC single phase. Use of DM/RO Water as feed water to the working chamber is mandatory, warranty void in case of non compliance. Supplied with Dye pots.
|
Construction |
Double walled |
|
Outer Chamber |
18 SWG Stainless Steel ( AISI 304) ARGON WELDED |
|
Inner chamber |
20 SWG Stainless Steel ( AISI 304) ARGON WELDED |
|
Insulation |
Glasswool insulation. |
|
Chamber Size |
40 cm x 30 cm x 15 cm (W x D x H) |
|
Chamber volume |
18 Liters |
|
Temperature Range |
5 °C above ambient to 99 °C |
|
Temperature Control |
By Microprocessor based Auto Tune PID Digital Temperature Controller Cum Indicator |
|
Temperature Display |
LED Display |
|
Temp. Accuracy |
0.1 °C |
|
Temp. Resolution |
0.1 °C |
|
Temp Measurement |
By Pt 100 sensor |
|
Operation on |
220/230 volts AC single phase |
|
Standard Supply |
Stainless steel lid with 12 holes |
|
Power plug with cord wire |
|
|
Overall Dimensions |
700 X 400 X 350 (L X W X D) mm |
