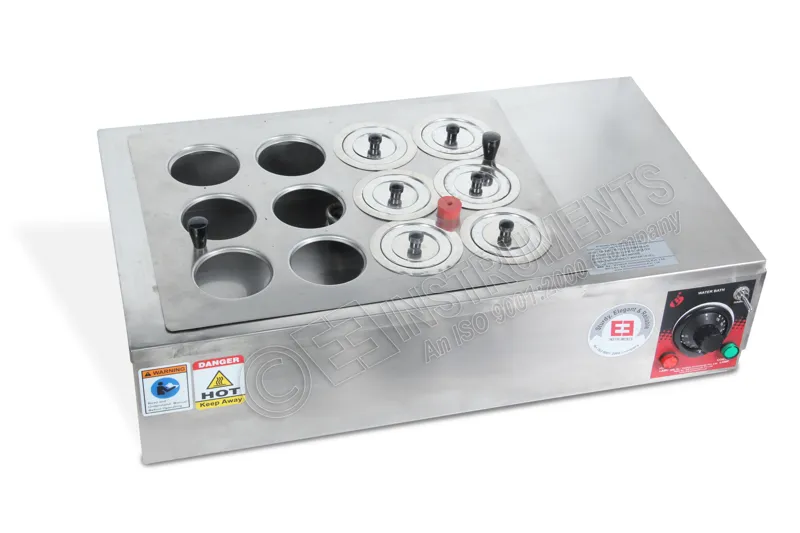

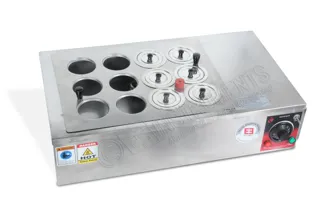

Double walled, Inner and Outer Chamber made of heavy gauge S.S. 304 , fully argon welded, Glass wool insulation, Temp. range 5°C above ambient to 99°C , Temp. control By Auto Tuning dual display PID Digital Controller, with Stainless steel lid with 6 Holes to accommodate 6 S.S. dye pots of 250 ml. Complete with power plug with cord wire, working on 230 V AC single phase. Use of DM/RO Water as feed water to the working chamber is mandatory, warranty void in case of non compliance. Supplied with Dye pots. Detailed specifications in the long description
|
Construction |
Double walled |
|
Outer Chamber |
18 SWG Stainless Steel ( AISI 304) ARGON WELDED |
|
Inner chamber |
20 SWG Stainless Steel ( AISI 304) ARGON WELDED |
|
Insulation |
Glasswool insulation. |
|
Chamber Size |
35 cm x 25 cm x 10 cm (W x D x H) |
|
Chamber volume |
9 Liters |
|
Temperature Range |
5 °C above ambient to 99 °C |
|
Temperature Control |
By Microprocessor based Auto Tune PID Digital Temperature Controller Cum Indicator |
|
Temperature Display |
LED Display |
|
Temp. Accuracy |
0.1 °C |
|
Temp. Resolution |
0.1 °C |
|
Temp Measurement |
By Pt 100 sensor |
|
Operation on |
220/230 volts AC single phase |
|
Standard Supply |
Stainless steel lid with 6 dyepots |
|
Power plug with cord wire |
|
|
Overall Dimensions |
600 X 350 X 250 (L X W X D) mm |
|
Weight (Approx.) |
19 kg |
