ASTM D4533-STAINLESS STEEL TEMPLATE-TRAPEZOID TEAR TEST-SLIT TYPE-200 X 75 MM

ASTM D4533-STAINLESS STEEL TEMPLATE-TRAPEZOID TEAR TEST-SLIT TYPE-200 X 75 MM

Model No: None

None

More Information
Techincal Specification

Compliance Standards

ASTM D4533, IS 14293

Applications

To precisely cut Trapezoid test samples from the Fabric lot.

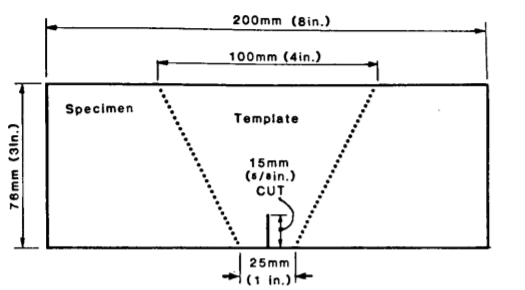

Slit Type with 1 Inch (25 mm) notch area
Template Length : 203.2 mm (8 Inches)
Template Width : 76.2 mm (3 Inches)
Template Thickness : 2 mm

Length (mm)	203.2 mm (8 Inches)
Width (mm)	76.2 mm (3 Inches)
Preliminary cut	15.9 mm (0.625 Inches) long at the center of 25.4 mm edge
Isosceles trapezoid marking	101.6 mm (4 Inches) at top edge and 25.4 mm (1 Inch) at bottom edge
