DIGITAL THICKNESS GAUGE - DEAD WEIGHT TYPE - 2 KPA, 20 KPA - 0.001 X 10MM - MITUTOYO - ASTM D5199

DIGITAL THICKNESS GAUGE - DEAD WEIGHT TYPE - 2 KPA, 20 KPA - 0.001 X 10MM - MITUTOYO - ASTM D5199

Model Number : GT-104DM220

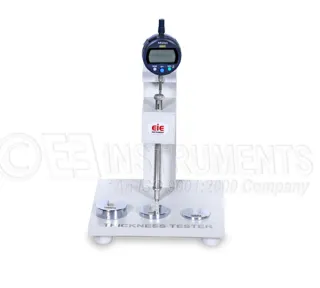

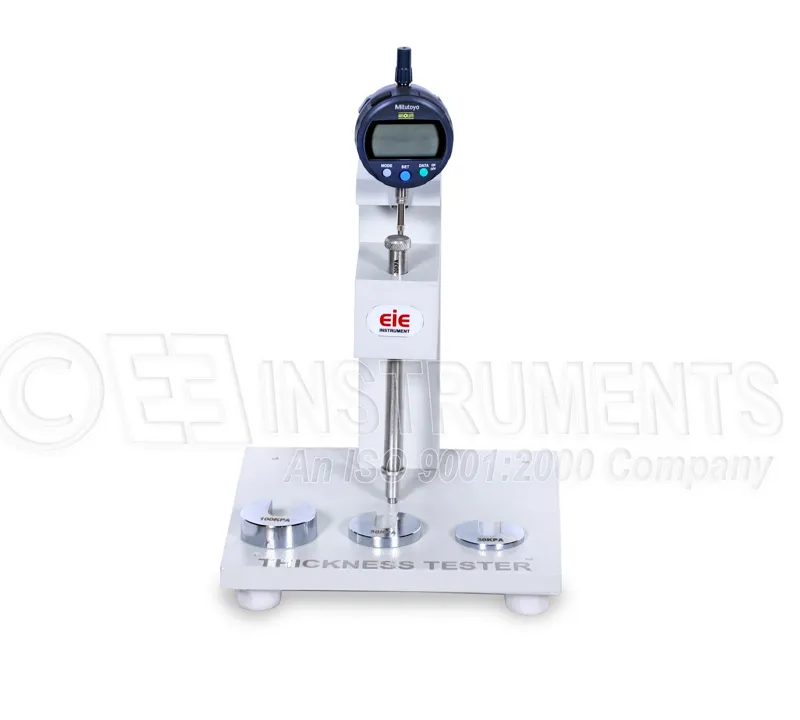

This is a Precision Instrument for measuring the Thickness of Paper , Plastic Film, Laminates, Foil or Board. A Digital dial gauge is mounted on the base with a Dead Weight on top so as to develop a uniform, reproducible constant pressure on the anvil through the foot.

Compliance Standards

ASTM D5199, IS 13162 (Part-3), IS 2508

Applications

Suitable to measure Thickness of Geotextile, Geocomposite, Geonets, HDPE Geomembrane & Geomembrane material

Salient Features

  1. Digital indicator is easy to use while also being quick and efficient.
  2. It features a reversible anvil so it can measure concave surfaces such as lenses, a grip handle and thumb trigger that works with the spring loaded plunger to make the instrument fast and ergonomic.
  3. Carbide disc contact points
  4. Protection Rating IP42
  5. Data hold
  6. Counting direction switchable
  7. Battery SR 44 or LR 44

Function of Digital Models (IDC Type)

  1. ON/OFF
  2. Inch/mm Conversion
  3. Zero/ABS
  4. ±Direction Changeover
  5. SPC Output
  6. Battery Life   : 5,000 hrs
  7. Power Supply : Silver Oxide Cell (SR-44 1pc.)
  8. Preset
  9. Provides GO/±NG Judgment
  10. Face Rotates 330°


Following pressure foots and Applied Load will be the part of standard supply:

Serial NoPressure Foot (mm)Applied Load (Kpa)Applications
156.42 ± 0.01Shall be used for Geotextile, Geocomposite, Drainage Material & Geonets
26.352 ± 0.01, 20 ± 0.01 Shall be used for Geomembrane
