Applications
- Creep Test (Stepped Isothermal Method) for Polymer Material
- Creep Rupture test for Polymer, Georibs & Geogrids
- Stress relief test
The machine consist of following parts
- Loading frame capable to test 200 mm sample (WITH INBUILT LOAD CELL)
- Dedicated PC Software
- Environmental chamber
- Test Fixture (Test Grip)
Following is the features of the machine
- Dual Column, Single Test Space
- Floor standing model
- Uniquely designed servo controlled operation
- Aesthetic exterior appearance
- Strong and durable load frame
- Simple and easy to understand operation
- Equipped with single Load cell

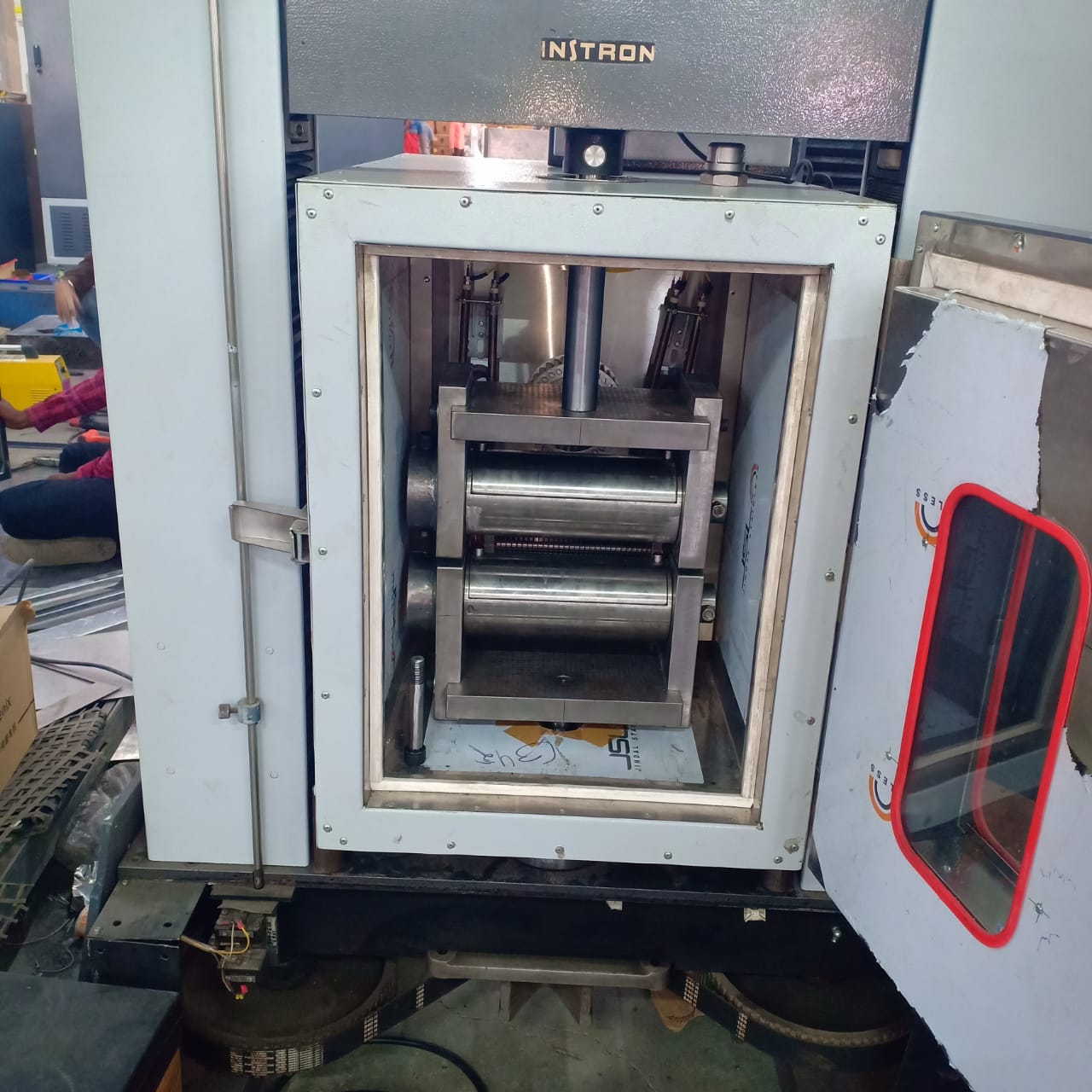

- Equipped with Thermal leakage proof environmental chamber
- Easy access for mounting & dismounting of samples, Changing of test fixture and Positioning of environmental chamber
- Enclosed Environmental chamber in surrounding of the test fixture (test grip) thus eliminating the complex adjustment of load cell, mounting & dismounting of test samples
- Easy opening and closing of the environmental chamber doors for mounting the test samples
- Equipped with Servo Motor, Servo drive and Touch screen HMI & PLC Controller
- Auto Load rate/Strain rate control using Imported Servo drive
- On-screen one touch Easy load cell selection
- Permanently mounted calibrated load cells
- Overload & extension protection parameter for mechanical safety by help of limit switches
- Also fitted with Emergency stop button to stop the test in between
- Automatic electronic controllable movement of Cross-head travels (START-STOP-UP-DOWN)
- Auto-stop / Return of cross heads to home position as and when sample breaks
- Speed Variation by dedicated Servo Drive from 0.01 mm/min to 500 mm/min
- Extension indication with least count of 0.01 mm through Proximity switch
- Dedicated PC Software with RS-232 Interface facility
- Facility to export the generated data to excel files for further analysis
- Also, Supplied complete with Instruction manual, Test report and calibration certificate
Specifications of Dedicated Software:
- RS 232 interface with WINDOWS based software to conduct test and keep record of generated data with Graphical Representation
- Also, keep record of generated results i.e. Yield Load, Yield Extension, Break Load, Break Extension, and Modulus of Elasticity
- Line, Doted line, etc facility in graph
- Graph Grids color combination facility
- Graph zooming facility
- Individual graph comparison facility
- Graph overlapping facility for analysis of material property
- Auto scaling facility
- Company logo insertion facility
- Software can run various tests and can recall data for any test done in history. (If Saved)
- Software is Menu Driven for easy navigation through tests.
- Test reports and graphs directly printed on terminal printer through direct print commands after the test is completed.
- Data and Result Units Selectable
- User can operate the machine directly from the software itself
- User can export the generated data in various file formats such as i.e. Excel, PDF etc
- Large Storage capacity (More than 50,000 tests) Depending upon Hard Disk capacity.
Temperature Range |
0 - 100 °C |
Temperature Accuracy |
± 2°C |
Temperature Resolution |
0.1°C |
Temperature sensor |
PT- 100 Sensor |
Temperature controller |
Microprocessor based PID Digital Controller |
Temperature Ramp Rate |
14 °C |
Load Conditioning (RH dwell time) |
10000 Seconds (User Defined) |
Time Range |
0-99999 Seconds (User defined) |
No of load cells |
01 No |
Load cell Capacity |
50 Kn capacity |
Motor type |
Servo Motor |
Motor rating |
3/5 KW Motor |
Motor Speed Control |
With Dedicated servo drive |
Speed Range |
0.01 - 500 mm / min |
Horizontal daylight in mm |
600 mm |
Vertical daylight in mm |
1500 mm |
Cross head travel |
1000 mm |
Position resolution |
0.01 mm |
Controller |
Touch screen HMI & PLC Controller |
Load Least Count |
0.01 KN |
Encoder |
For elongation indication, 1000 PPR |
Least count for elongation |
0.5 mm travel |
Unit Selection |
Newton / Kgf / KN |
Indication parameters |
Maximum Load, Maximum Elongation, Selected Load Cell, Breaking Load, %Elongation, Current Load |
Paint |
Powder coating in attractive shades |
Power Supply |
440 Volts, 50 Hz, Three Phase, AC Supply |
PC Interface and Cable |
RS - 232 PC Connectivity and PC Software |
Jaws/Fixtures/Grips |
