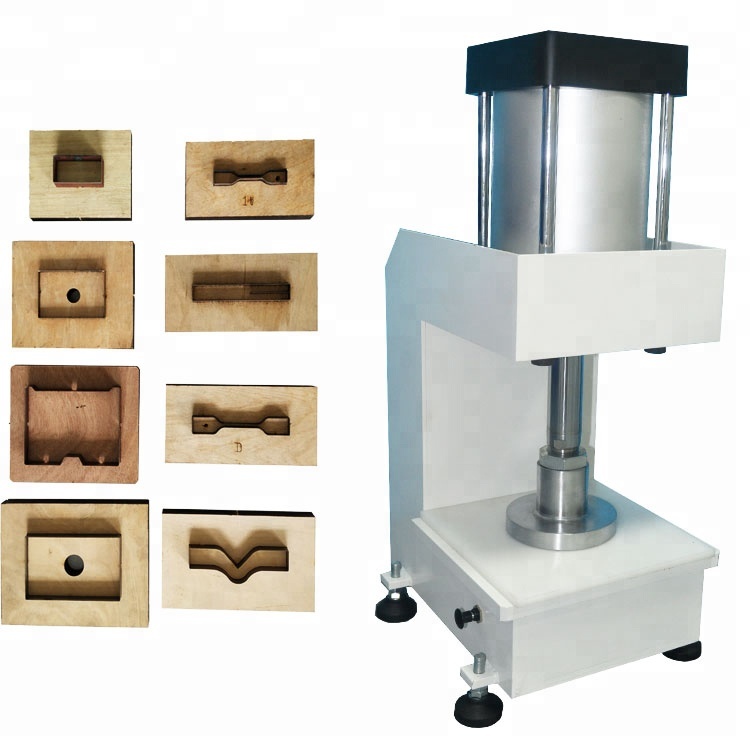

PNEUMATIC PRESS-DIE PUNCH PRESS-5 KN-AUTOMATIC-FOR GEOTEXTILE TESTS

PNEUMATIC SPECIMEN CUTTING PRESS-FOR GEOTEXTILE

This is Electro-Pneumatic Model. The pumping is done by gear-motor drive. Simply press a button & it will start building pressure & will stop automatically at set pressure by means of a pressure switch. Without Air Compressor and cutting dies

More Information
Techincal Specification

Compliance Standards

ASTM D4533, ASTM D4632, ASTM D638, ASTM D412

Introduction

This machine uses a powerful, direct pneumatic piston ram system for fast and precise preparation of sample test specimens for tensile tests and all other DIN, ISO and ASTM standard sample shapes from rubber, elastomers, foam rubber, plastic films, foils and paper.

Note

1) Please specify your test sample at the time of order.

2) Please arrange air supply at your premises or procure AIR COMPRESSOR from local market.

Operation	Pneumatic Press with electrical drive.
Maximum Hydraulic Press	5 KN
Punches	Template for Trapezoid, Grab test
Piston Travel (Cutting Stroke)	30 mm
Pressure Cut-Off	ON / OFF with Auto stop
Max material thickness	5 mm
Reproducibility	0.1%
Pneumatic force	4-6 Bar
Power	230 Volts, 50 Hz, Single Phase, AC Supply
Dimensions	440mm x 300mm x 380mm
Weight	50 Kg.
