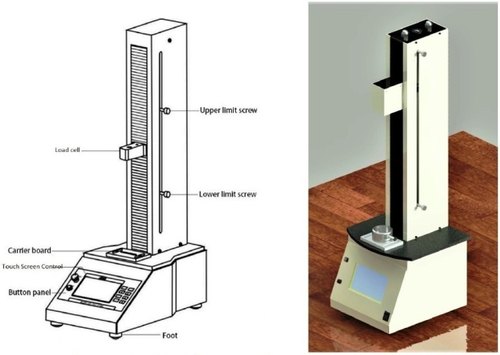

PENETROMETER FOR CHECKING PENETRABILITY OF ELASTOMERIC RUBBER STOPPERS - 50 KGF - SERVO MOTOR CONTROLLED SYSTEM
Our Automatic Penetration Force Tester is unique instrument for Penetrability testing with good stability, wide application and convenient usage with function of step less speed adjusting, uniform motion, converting mode between manual and automatic operation. It is used for various applications such as Puncture/ Piercing force of Syringe or hypodermic needle in Rubber stopper, Piercing Force, Penetration test, Measuring Strength of Glass Ampules as well as Scientific Research Institute & many more.
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance Standards
ISO 8362-7, ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904
Applications
It is used for various applications such as Puncture/ Piercing force of Syringe or hypodermic needle in Rubber stopper, Piercing Force, Penetration test, Measuring Strength of Glass Ampules as well as Scientific Research Institute & many more.
Salient features :
- Force tester fitted with compression and penetration fixtures
- Testing for CRITICAL elements of injectable medicine containers
- Touch Screen HMI & PLC Based model
- Servo Motor & Servo Drive for precise Operation.
- Simple operation, able to be used with various kinds of fixtures.
- Step less speed regulation
- Compact design & structure with stable drive
Technical specification
|
Capacity |
500N (50Kg) |
|
Accuracy |
0.1N / 0.01Kg/ 0.02lb |
|
Units |
N, Kgf, Lbf |
|
Length (mm) |
450mm |
|
Speed Range |
0 to 500 mm/min |
|
Data Output |
RS 485 PC Interface Facility |
|
Power Consumption |
220/230 Volt, 50/60 Hz |
|
Weight (Approx.) |
75 Kg |
|
Dimension (mm) |
400 x 400 x 1080 mm (LxWxH) |
