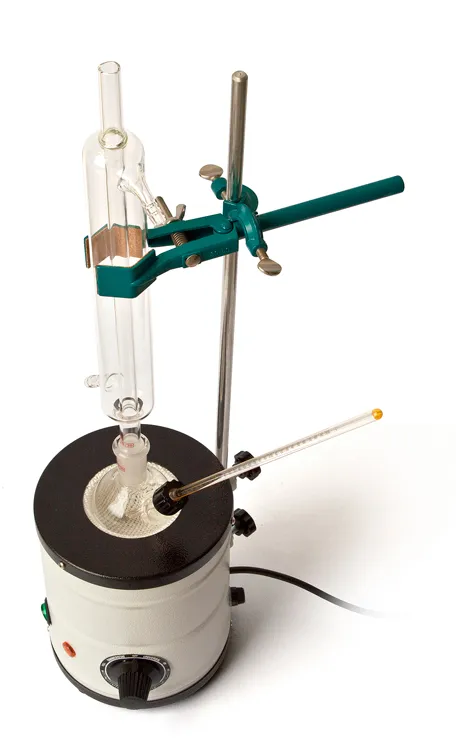

EQUILIBRIUM REFLUX BOILING POINT TESTER OF AUTOMOTIVE HYDRAULIC BRAKE FLUID - BIS 8654

Compliance Standards

Is 8654

Application

To determine the ERBP of hydraulic brake fluid according to ANNEX A of IS 8564 & averaging results.

Summary of test method

60 ml of brake fluid is boiled under specified equilibrium conditions (reflux) at atmospheric pressure in 100 ml flask. The average temperature of the boiling fluid at the end of the reflux period, corrected for variation s in barometric pressure if necessary, is the ERBP.

Details of apparatus

Consists of following parts and accessories.

(1) Flask : 100 ml round-bottom short-neck, heat resistant glass flask with 19/38 standard taper, female ground-glass joint and side-entering tube with outside diameter of 10 mm for the introduction of the thermometer.

(2) Condenser

1. Water-cooled
2. Reflux glass-tube type
3. Jacket 200 mm in length, bottom end of which have a 19/38 standard taper, drip-tip, male ground glass joint

(3) Boiling stones

Three clean, unused silicon carbide gains (Approx. 2 mm in dia, Grit no. 8)

(4) Thermometer

1. ASTM 2C
2. Equivalent to IP 62C
3. Temp range : -5 to 300 °C x 1 °C

(5) Heat Source

1. Heating mantle - 100 ml capacity
2. Temp controlled by Energy regulator
3. Supplied complete with rod, clamp and pliers
4. Operation on : 230 volts, 50 hz, Single phase, AC Supply
