FILTER WITH PIPETTE UNIT FOR CFPP TEST - ASTM D6371, IP 309

FILTER WITH PIPETTE UNIT FOR CFPP TEST - ASTM D6371, IP 309

Model No: EIE-PTLT-126R.A1

Detail Specification. As per following Page.

Compliance with following International Standards:

ASTM D6371, IP 309, IS 1448 Part 110


Purpose:

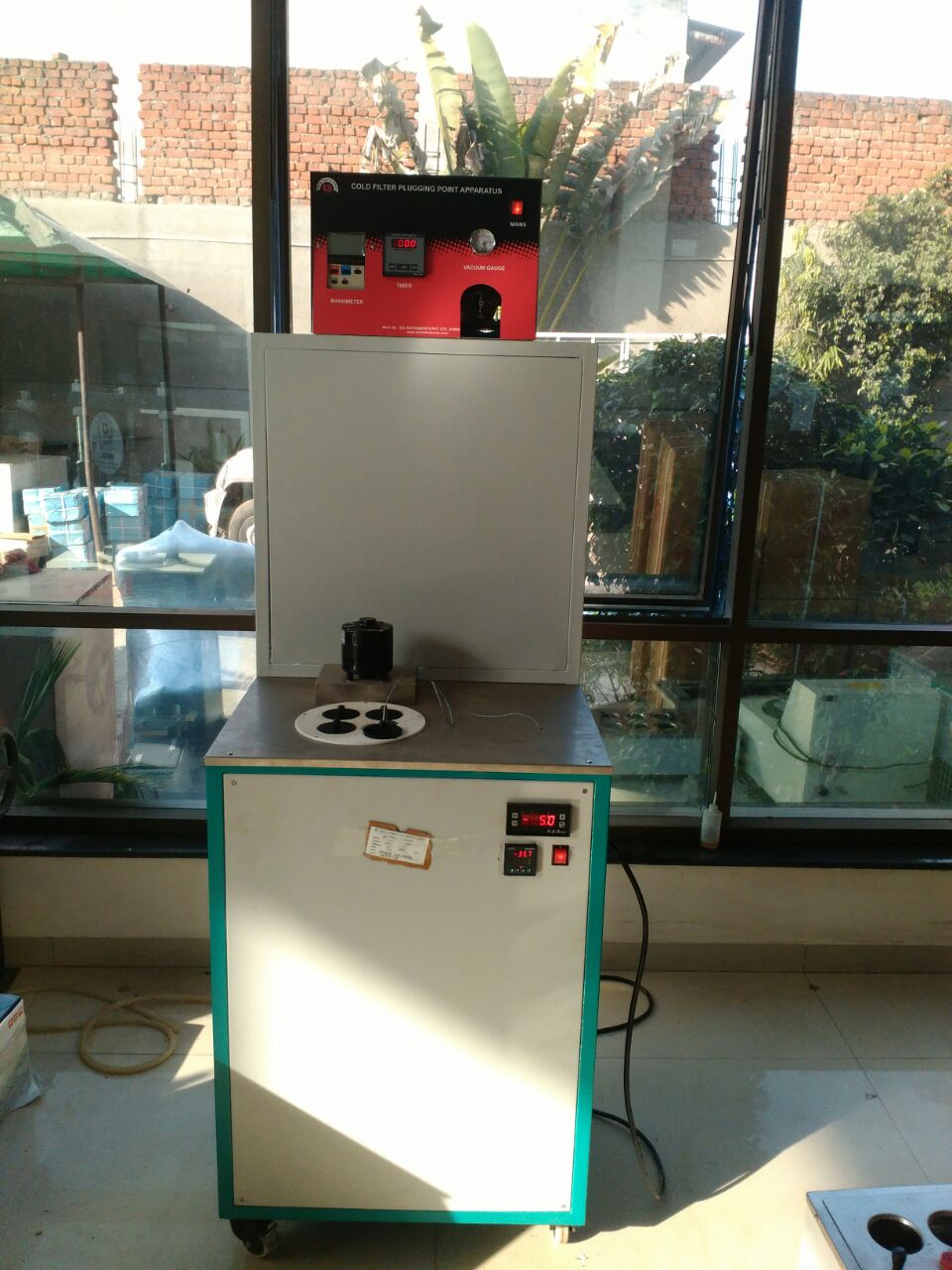

Used for Determination of the cold filter plugging point (CFPP) temperature of diesel and domestic heating fuels by measuring the temperature at which the sample ceases to flow through a wire mesh filter.


Pipette with Filter unit:

Pipette of clear glass with a calibration mark corresponding to a contained volume of 20 ± 0.2 mL at a point 149 ± 0.5 mm from the bottom of the Pipette. It will be connected to the filter unit. Body of Filter unit will be of Brass material and will be supplied along with 32 μm, wire mesh filters, brass screw cap, filter holder and brass cylinder.
