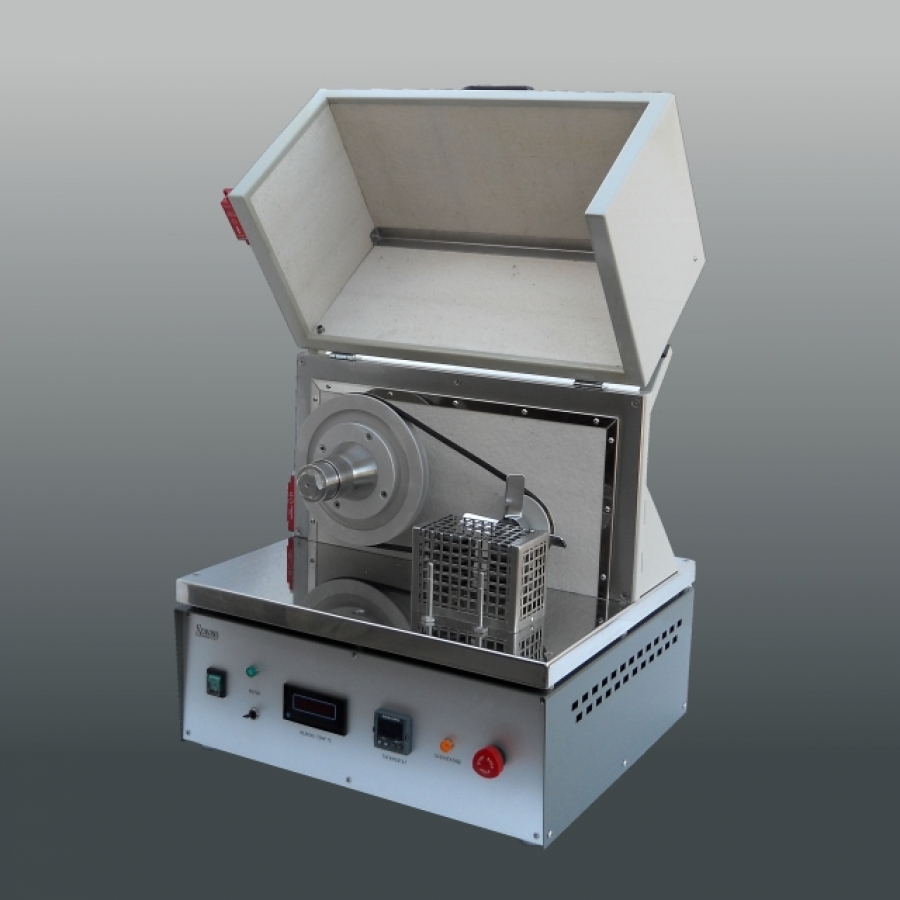

LEAKAGE TENDENCIES TESTER - ASTM D1263 - FOR WHEEL BEARING GREASE

LEAKAGE TENDENCIES TESTER - ASTM D1263 - FOR WHEEL BEARING GREASE

Model Number : EIE-PTGT-135

None


Compliance Standards

ASTM D1263, FTM 791-3454


Applications

Evaluates the tendency of automotive wheel bearing grease to separate oil and/or grease under prescribed laboratory conditions. The test is performed at elevated temperature in a modified automotive spindle-hub assembly rotated at 660rpm. Any leakage of oil or grease during the test period is collected and weighed.


Salient Features

  • Enamel finished benchtop, heavy-gauge steel case.
  • Powder coated in attractive shades
  • Hinged shield with thermal insulation.
  • Safety switch that stops the motor and the heating, when the shield is open.
  • Stainless steel bearing spindle fixed to the body with insulating spacers.
  • Supplied complete with Jacket for ASTM 7C spindle thermometer. (Thermometer ports in the spindle and the cabinet allow for precise setting and monitoring of test temperature.)
  • 1/3 HP electric motor with metal shaft extension, drive pulley and fan built exactly as prescribed by the ASTM D 1263 test method. Stainless steel hub with pulley and leakage collector.
  • The motor is mounted on an adjustable support to permit tightening the pulley.
  • Complete with Stainless steel heaters.
  • Temperature control through PROGRAMMABLE LOGIC CONTROLLER & TOUCH SCREEN HMI DISPLAY.
  • Comes with overheating protection and safety thermostat
  • Wide temperature range.


Temperature controller

Programmable logic controller and Touch screen HMI Display

Temperature Range

Ambient to 150 °C

Temperature sensor

PT-100 Sesnsor

Temperature Accuracy

± 1 °C

Temperature Resolution

0.1 °C

Temperature Display

In built within HMI Touch Display

RPM Indication

In built within HMI Touch display

Digital Timer

In built in HMI Touch Screen

RPM Range

0-999 RPM

Heating elements

1 KW

Safety device

Safety Thermostat, Overshoot and Undershoot protection
