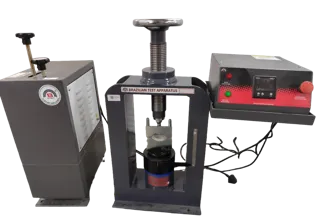

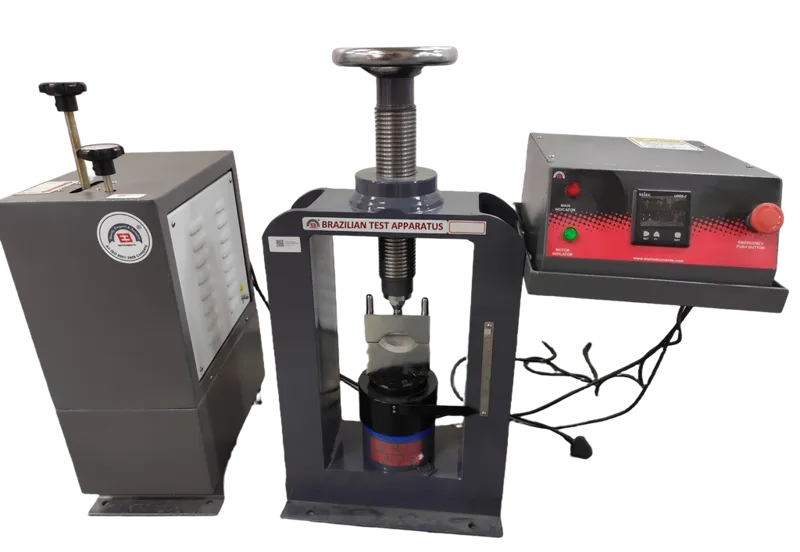

BRAZILIAN TEST APPARATUS- DIGITAL

As per IS : 10082 (1981). It is for conducting Brazilian Test on 50 mm diameter samples to 100 mm diameter samples. Loading jaws for 60 X 30, 70 X 35, 80 X 40, 90 X 45 and 100 X 50 mm samples, to be purchased separately. The Instrument as per ASTM D3967 is also available.

The instrument is designed to test specimens from 50 mm dia to 100 mm dia having thickness equal to half of the diameter for determination of Indirect Tensile Strength. A pair of loading jaws, designed so as to contact a disc shaped sample at diametrically opposed surfaces over an arc of contact of about 10 degrees at failure, is supplied. The set of jaws supplied with the equipment is designed for 50 mm dia specimen and therefore it is essential to order jaws for required sizes, if the samples of other diameters are to be tested.

For 60 X 30, 70 X 35, 80 X 40, 90 X 45 and 100 X 50 mm samples, loading jaws has to be purchased separately.

Machine Operation : Motorized
Read out : Digital
Least count : 0.001 kn
Capacity : 100 kN
Calibration : 10 Point calibration
Peak load will be hold on the first line and first line will show the actual load
Auto stop after failure of the sample
Simple plug and play instrument
