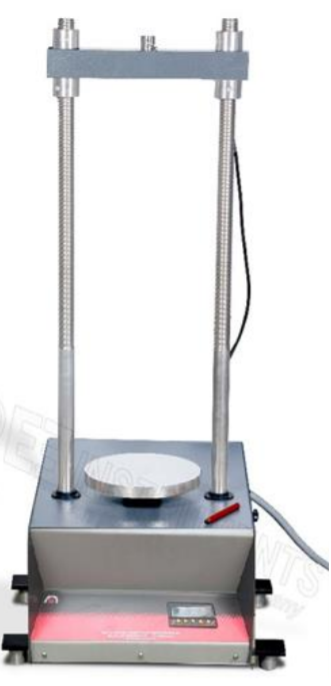

UNIVERSAL DIGITAL MULTISPEED LOAD FRAME WITH SOFTWARE

Universal Load Frame (Digital)-The Universal Load Frame is a system designed for carrying out 3 different tests mainly CBR test , Marshal stability test and unconfined compression test along with inbuilt programming and data acquisition of all the three tests. The different values of measurements like load , displacement can be digitally viewed on the same screen.

Compliance standard : ASTM D1833, ASTM D1559, ASTM D6927, ASTM D2850

Salient features

1. Touch screen graphical display.
2. Load and displacement on the same screen.
3. Capacity : 50 KN
4. Resolution : 0.001 KN
5. Displacement capacity : 100 mm
6. Displacement resolution : 0.01 mm
7. 1 mm / min to 51 mm / min variable speed
8. User friendly, the desired speed can be digitally pre-set as per the test requirement
9. No gears, no lever, no mechanical adjustments to change speed.
10. Speed can be inserted from the controller
11. Operated from 1 HP servo motor

Apparatus description

1. Data acquisition software 3 in 1 EIE-Pro software.
2. Direct analytical reports on PC software.
3. Auto generation of load vs time graph.
4. Auto calculation of CBR, Marshal and unconfined value.
5. Capable to save graph for future reference.
6. Data storage in excel file.
7. Connection through RS-232 or RS-434 port.
8. Two way communication to operate machine from computer.

Inbuilt programming for the following tests

1. CBR test
2. Marshal stability test
3. Unconfined compression test
4. Pre-decided speed rate per min/ triaxial test

Salient features of CBR test

1. Speed 1.25, 1.5 and 2.5 mm / min.
2. Auto store of load and flow value at 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 7.5, 10, 12.5 mm.
3. Auto reverse after 12.5 mm or after pressing stop.
4. Auto calculation of the CBR value at 2.5 mm and 5 mm.

Salient features in Marshal stability test

1. Auto save of peak load and peak flow value.
2. Auto reverse on the completion of the test.
3. Auto reverse as and when machine is stopped.
4. Speed 50.8 mm / min.

Salient features in unconfined compression test

1. Speed 1.25, 1.5 and 2.5 mm / min.
2. Auto store of load and flow value at time interval of 30 seconds.
3. Auto reverse after 15 mm or after pressing stop.

Note

1. 3 KVA servo stabilizer is must to operate the machine, which can be supplied at extra cost.
2. Accessories for CBR, Triaxial, Unconfined test and Marshal Test has to be purchased separately
