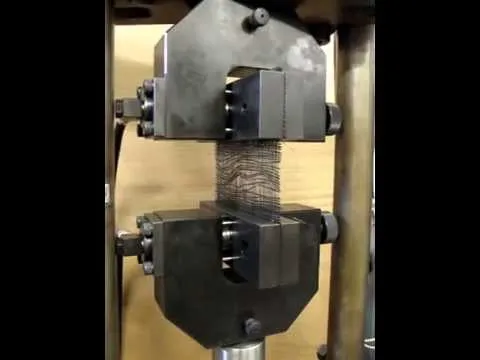

ASTM D4595, ISO 10321, IS 15060-HYDRAULIC GRIPPING-WIDE WIDTH TENSILE TEST

ASTM D4595, ISO 10321, IS 15060-HYDRAULIC GRIPPING-WIDE WIDTH TENSILE TEST

Model Number : GT-111.4H

As per ASTM D4595, ISO 10319, IS 13162 (PART-5), ISO 10321, IS 15060, to carry out the wide width tensile test of Geotextile Fabrics

More Information
Techincal Specification

Compliance Standards

ASTM D4595, ISO 10319, IS 13162 (PART-5), ISO 10321, IS 15060

Applications

To carry out the wide width tensile test of Geotextile Fabrics

Details

Designed and tested as per ASTM Norms
Comes with 02 Nos Jaw Faces in stationary grip
Comes with 02 Nos Jaw Faces in Moving Grip
Movable and Stationary Grips are operated by hydraulic cylinders
Hydraulic cylinders are operated by separate release / hold control panel.
Supplied complete with hydraulic Piping, Release/Hold Levers.

Jaw face	Waves Type pattern
Grip support	Fixed Point type
Jaw face coating	Plain/Fabric/Rubber to avoid slippage
Jaw size	210MM X 50MM
RELEVANT STANDARD	ASTM D4595
