THREE POINT BENDING FIXTURE -CUSTOMIZED FLEXURAL JIG-FOR SOFT BALLISTIC ARMOR

THREE POINT BENDING FIXTURE -FOR SOFT BALLISTIC ARMOR

Name: THREE POINT BENDING FIXTURE -FOR SOFT BALLISTIC ARMOR
Rating: 4.4 (89 reviews)

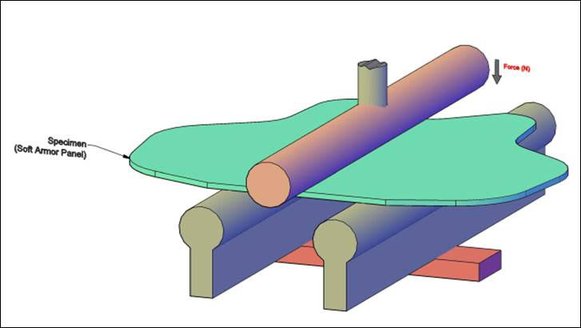

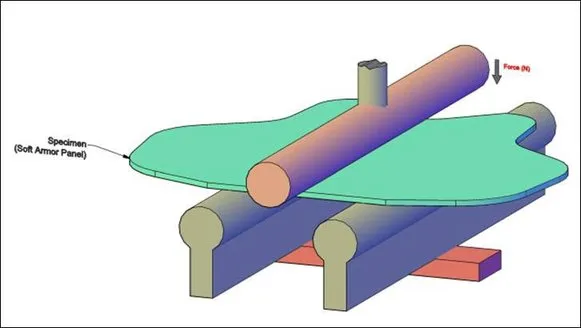

Fixture to check the deformation and three point bending flexibility of Soft Balistic Armor. (Tensile Testing Machine is the primary Instrument for this testing)

More Information
Techincal Specification

Application

To conduct bending test of Ceramic/Metal using UTM Machine (50 KN Capacity)

Details

Consists of Base frame, Load bearing bottom rollers, Load Applicator etc.

Load Bearing Bottom Rollers
Diameter	4.50 mm
Length	40 mm
Dia of Lids at both the ends	1.50 mm
Length of lids at both the ends	5.00 mm
Punch holder
Diameter at top	40 mm
Total Length	100 mm
Punch Groove	4.50 mm spherical
Loading Member
Length x width	38.5 x 40 mm
Groove for the rollers	4.50 mm
Thickness from bottom center to Top center	17.05 mm
Thickness from roller edge to top edge	14.55 mm
Distance between the rollers	20 mm
Base Frame
Length x width	60 x 40
Groove for the rollers	4.50 mm
Thickness	25 mm
Distance between the rollers	40 mm
