Job Application
Applications

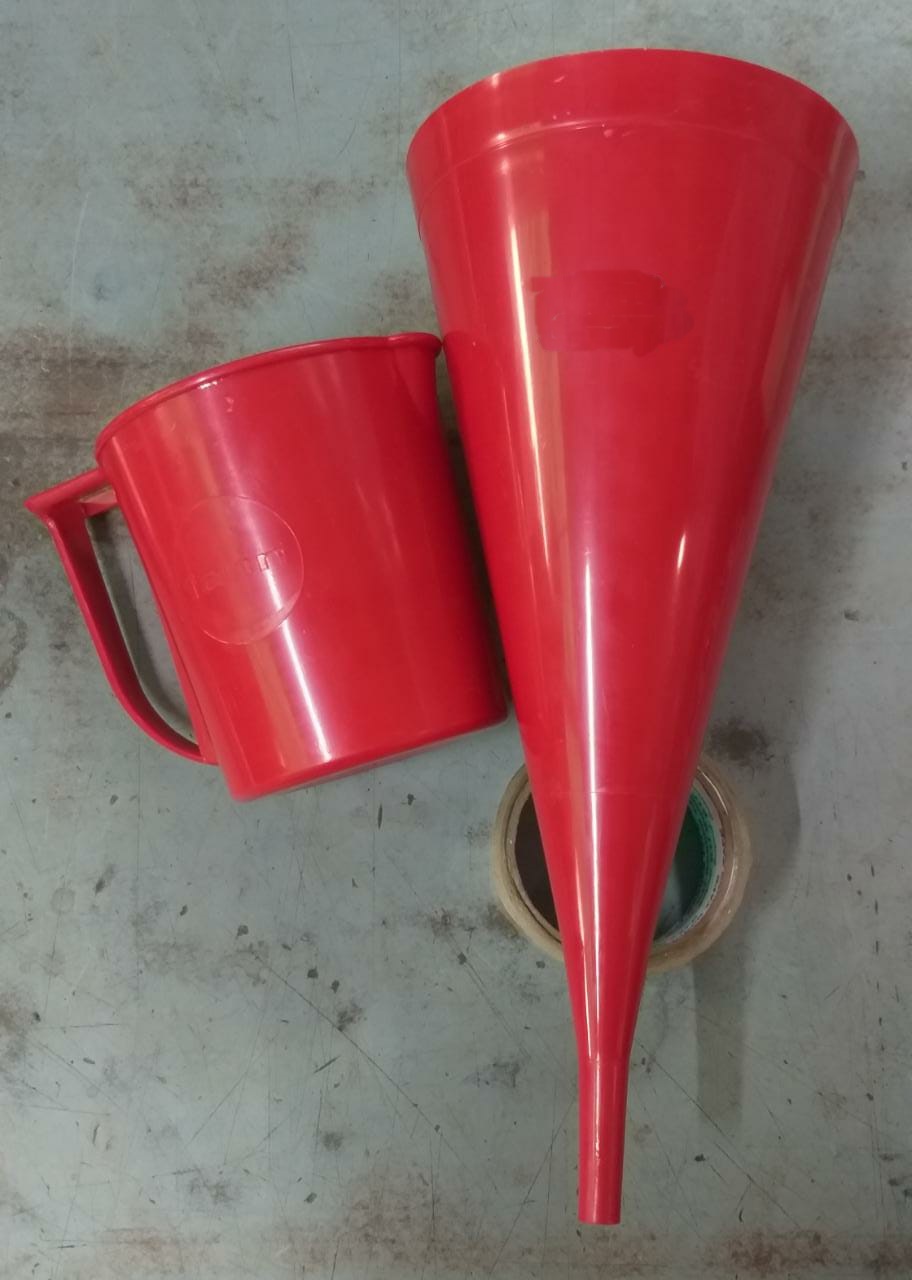

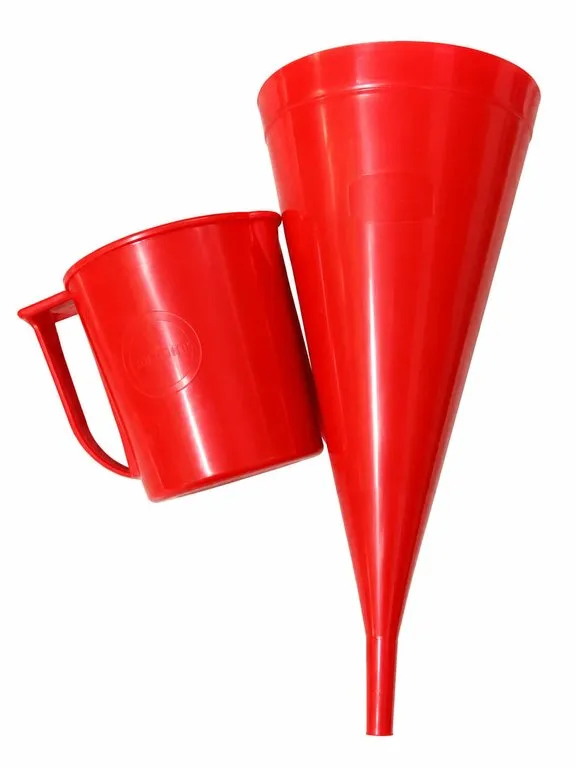

This cone is used to find out viscosity of Bentonite slurry and like material. The capacity of the funnel is 1500 cc. Time in seconds required to flow out 1000 cc of slurry from cone is measured as funnel viscosity of the material. As per ASTM D 6910.
Funnel Cone
- Length : 12.0 in. (305 mm)
- Diameter : 6.0 in. (152 mm)
- Capacity of the cone from orifice opening to the bottom of the screen : 1500 cc
Orifice :
- Length : 2.0 inches (50.8 mm)
- Inside Diameter : 3/16 inches (4.75 mm)
- Screen : with opening of 3.2 mm - Screen fixed at a level 3/4 in. (19.0 mm) below top of funnel.
Graduated cup : Graduated in cc. Capacity 1000 ml. with molded mark at 350 ml and at 946 ml.

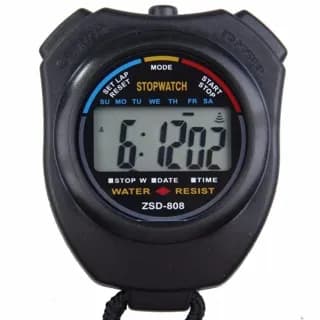

Stop watch and Glass Thermometer or Digital Thermometer available at extra cost
|
Overall Dimensions |
8" X 8" X 15" |
|
Weight (Approx) |
250 gm |
