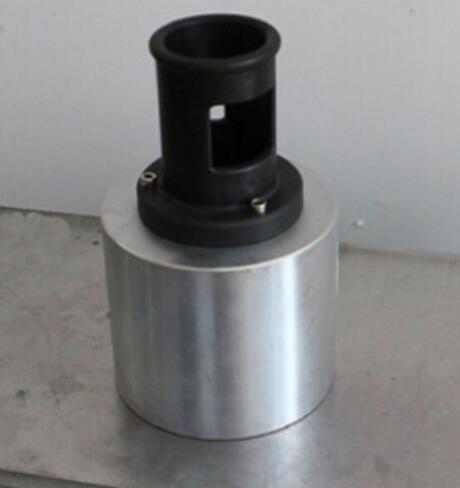

CALIBRATION ANVIL FOR CONCRETE TEST HAMMER

CALIBRATION ANVIL FOR CONCRETE TEST HAMMER

Model Number : EIE-CT-109

The Calibration Anvil for Concrete Test Hammer is used to verify the accuracy of rebound hammers, as per IS: 516 (Part 5/Section 4): 2020 and ASTM C 805. Made of hardened steel, it provides a standard reference to ensure accurate and consistent rebound measurements for concrete strength testing. Steel anvil for verification of the hammer, defined with a hardness between 64 - 68 HRC and a mass of (20 ± 1) kg and a diameter of approximately 150 mm. Weight 20 kgs approx.

More Information
Techincal Specification

Applications

Steel anvil for verification of the hammer as per IS:516 (PART 5/SEC 4):2020 / ASTM C 805

It consists of a steel cylinder with 150 mm diameter and 150 mm height. The hardness Rockwell C (HRC) value of the impact area shall be 64 to 68.

Technical specifications

Material type. : Steel
Hardness : 64-68 HRC
Mass : (20 ± 1) kg
Diameter. : 150 mm

NABL Calibration for the HRC Hardness can be provided at extra cost.

Overall Dimensions (H X W X D) (mm)	330 X 180 X 180 mm
Weight (Approx)	24 kgs
