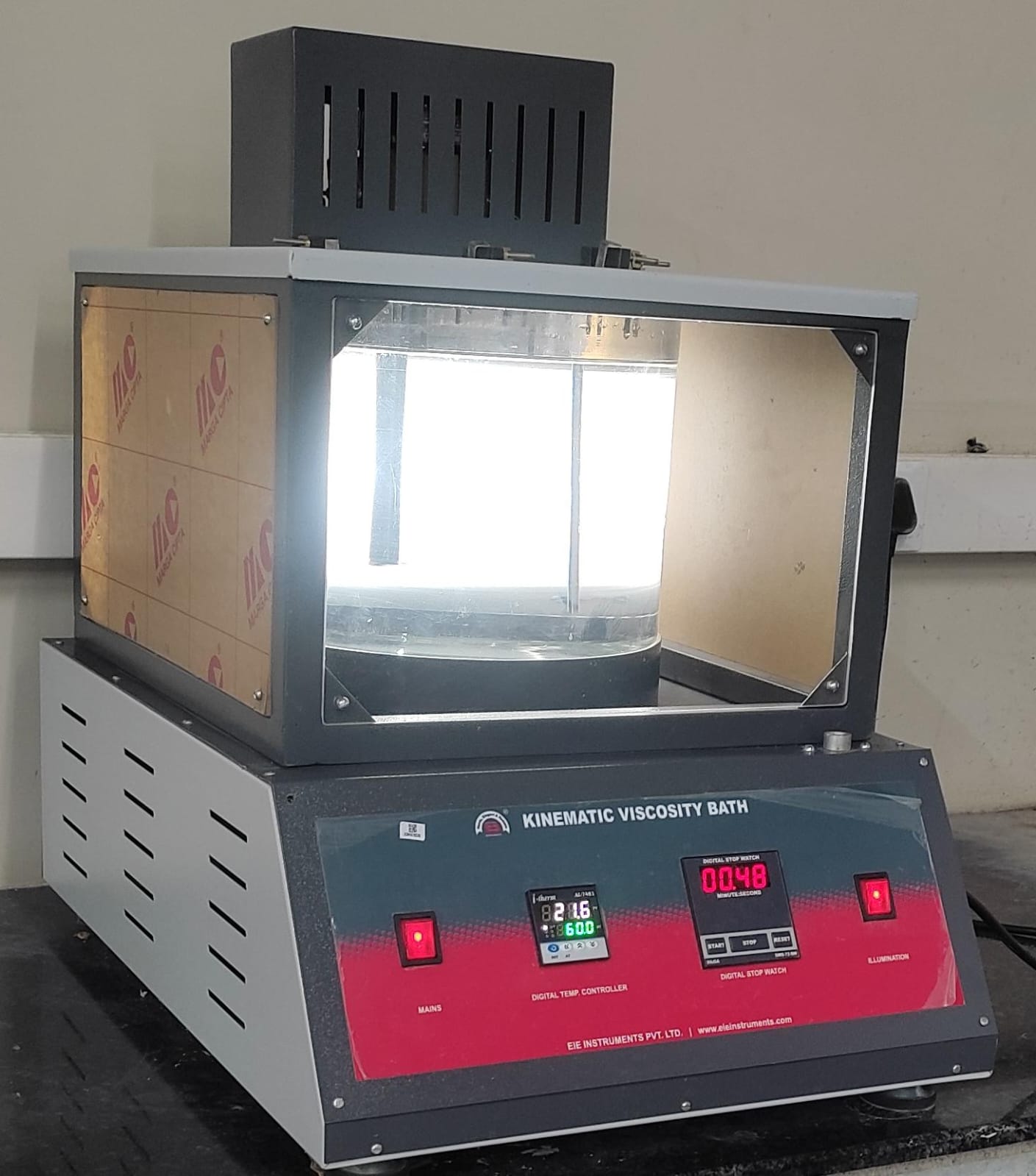

KINEMATIC VISCOSITY BATH-(ABOVE AMBIENT)-FOR 3 VISCOMETERS-ROUND GLASS JAR

Model No: EIE-PTLT-109AA3

Used for determination of kinematic and instrinsic viscosity of fuels, lubricants & petrochemical raw materials at constant temperatures in accordance with ASTM D 445 and other equivalent methods, 3 Test Bath ROUND GLASS VESSEL with Digital. Temp. Controller cum Indicator. FHP motorized stirrer for uniform temperature, Dual Display Microprocessor Based Digital Temp. Controller with PT-100 sensor, Temp. range 5° C above ambient to 150° C.Control accuracy± 0.5° C. complete with Lighting attachment with long life, Low wattage lamp. Universal Viscometer holder. Tray for Viscometer ,Working on 230 V single phase. GLASS U TUBE VISCOMETER-WITH CERTIFICATE OF CONSTANT OF VARIOUS SIZE AND SPECIFICATION AT EXTRA COST,

PURPOSE

Used to determine the viscosity of oils and fuel, above room temperature up to a maximum of 150°C. Generally used @ 40°C but can also be used at any other temperature between measuring range.Can also be used for other application where full visibility of sample and constant temp. is important for the test. The Instrument complies with IP 71, ASTM D 445 & 446

CONSTRUCTION

Borosilicate round glass jar to accommodate 3 Viscometers
Equipped with slow speed vibration free FHP motorized stirrer
Accommodation of Three viscometer is possible.
Work space illuminated brilliantly without glare
Temperature controlled by digital dual set‑point Microprocessor based PID Controller with certificate of calibration
All electrical controls are mounted on a drawer chassis in the side part of the case of the bath.
DIGITAL STOP WATCH is mounted on the control panel to precisely observe the elapsed time for oil passing from viscometer lower mark to upper mark or vice versa.
Designed for easy cleaning and simple maintenance
Built‑in boost for initial fast heating
Working size approx: 300 mm dia X 350mm depth
Rating : 1.5 KW
Glass U Tube Viscometers of various size and shape available. These are to be procured at extra cost.
Digital temp. controller with resolution of 0.01°C also available. Price on request.

Optional Accessories At Extra Cost :

Voltage Stabilizer (Highly recommended)
Temperature calibration certificate as per ISO/IEC : 17025 (NABL)
Thermometer glass ‑ IP 30C (‑23.6 / 26.4°C x 0.05°C ) ASTM 45C:
Glass U Tube Viscometer to be purchased at extra cost
viscometer rack for safe keeping of U Tube Viscometer - can accommodate 6 tubes on a bench top

Note

Use of RO/DM Water as a bath media is mandatory for long lasting performance of Heaters. Warranty void in case of non compliance

Ambient Temperature Range	+ 5°C to 150°C
Temperature fluctuation ( Accuracy)	40°C ± 0.5°C
Temperature controller	Microprocessor based PID
Rated Power	230 volt, 50 HZ, AC
Display	LED digital display
Sensor	Pt‑100 sensor
